Hyundai Kona: ESP (Electronic Stability Program) System / Components and components location

Hyundai Kona (OS) 2018-2024 Service Manual / Brake System / ESP (Electronic Stability Program) System / Components and components location

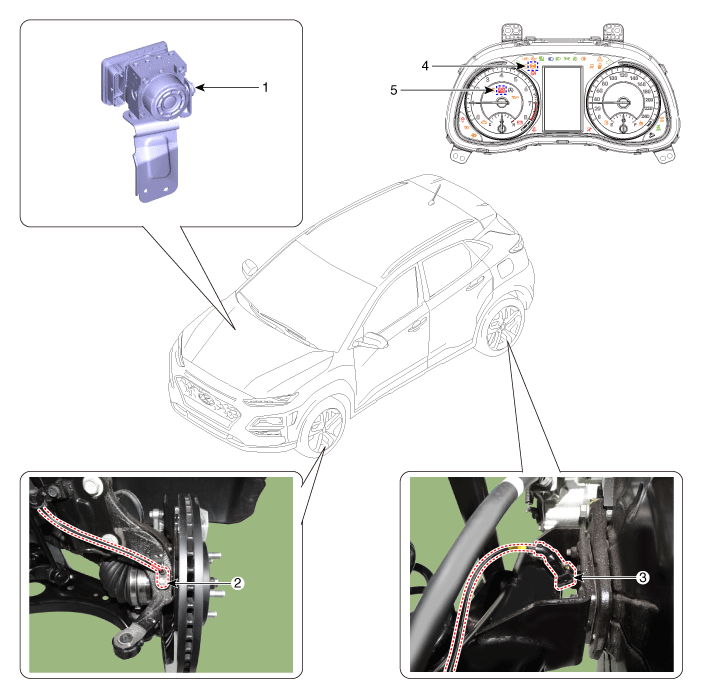

Components

1. ESP Control Module (HECU)
2. Front Wheel Speed Sensor
3. Rear Wheel Speed Sensor

4. ABS Warning lamp
5. EBD / Parking brake warning lamp
