Hyundai Kona: Dual Clutch Transmission Control System / Shift Lever Components and components location
Hyundai Kona (OS) 2018-2024 Service Manual / DCT (Dual Clutch Transmission) System / Dual Clutch Transmission Control System / Shift Lever Components and components location

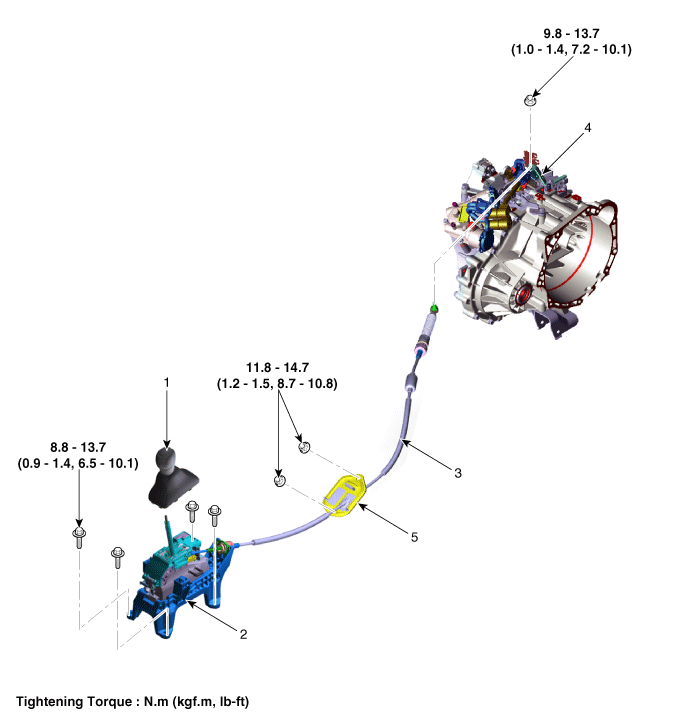

| Components |
| 1. Shift
lever knob assembly 2. Shift lever assembly 3. Shift cable |
4. Manual
control lever 5. Shift cable retainer |
Inhibitor Switch Repair procedures
Inspection
Inspection Flow
Items to check
1.
Inspect DTC code.
2.
Inspect whether N setting matches.
–
...
Shift Lever Repair procedures
Removal
1.
Remove the shift lever knob & boots (A) pull both of it up.
2.
Remove the floor console assembly.
(Refer to ...
