Hyundai Kona: Interior lights / Front lamps
Front map lamp (1)
.png)

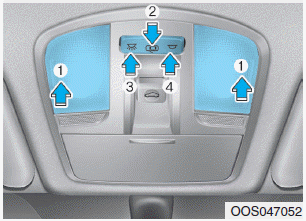

â– Type A (Without sunglass case)
.png)

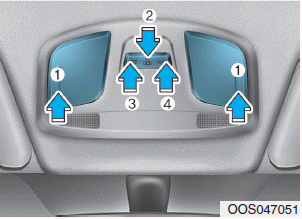

â– Type B (With sunglass case)
Front door lamp (.png)
) (2) :
The room lamp for the front/rear seats is automatically turned ON for approximately 30 seconds, when a door is opened.
The room lamp for the front/rear seats is automatically turned ON for approximately 15 seconds, when the remote key (smart key) unlocks the doors. The room lamp fades out, when the ignition switch is placed to the ON position in 15 seconds. The room lamp remains ON up to 20 minutes, when a door is opened with the ignition switch in the either the ACC or OFF position.
Front room lamp
.png)
(3) : Press the button to
turn ON the room lamp for the front/rear seats..png)
(4) : Press the button to
turn OFF the room lamp for the front/rear seats.
Interior lamp AUTO cut
The interior lamps will automatically go off approximately 20 minutes after the
engine is turned off and the doors are closed. If a door is opened, the lamp will
go off 40 minutes after the engine i ...
Rear lamps
Rear room lamp switch :
Press this button to turn the room lamp on and off.
NOTICE
Do not leave the lamp switches on for an extended period of time when the
engine is turned off. ...
