Hyundai Kona: Intake and Exhaust System / Air Cleaner Components and components location

Hyundai Kona (OS) 2018-2026 Service Manual / Engine Mechanical System / Intake and Exhaust System / Air Cleaner Components and components location

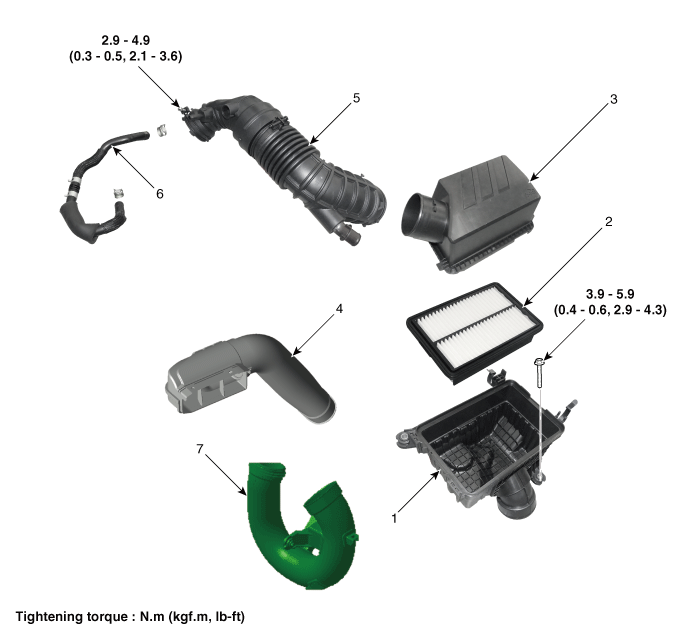

Components

1. Air cleaner body
2. Air cleaner element
3. Air cleaner upper cover
4. Air duct

5. Air intake hose
6. Breather hose
7. Resonator

Air Cleaner Repair procedures

Removal and Installation Air Cleaner Assembly 1. Disconnect the battery negative terminal. 2. Remove the engine cover. (Refer ...
