Hyundai Kona: Dual Clutch System / Clutch Engagement Fork and Engagement Bearing Components and components location

Hyundai Kona (OS) 2018-2022 Service Manual / DCT (Dual Clutch Transmission) System / Dual Clutch System / Clutch Engagement Fork and Engagement Bearing Components and components location

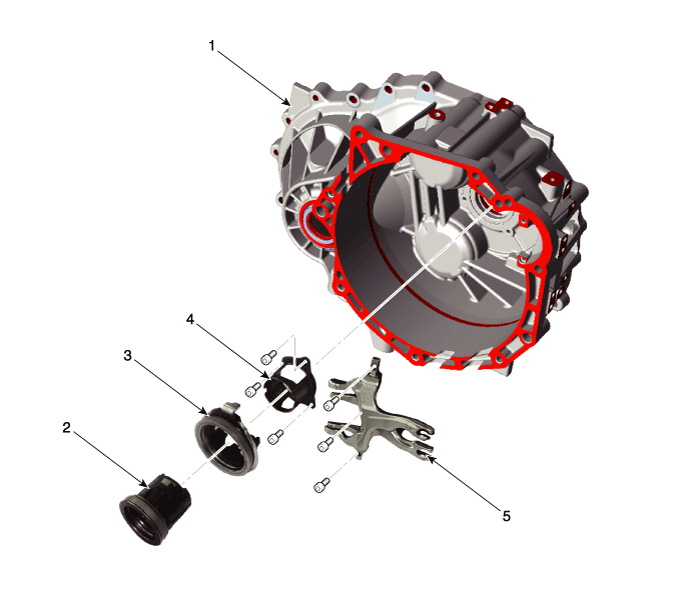

Components

1. Clutch housing
2. Engagement bearing 2 (Even)
3. Egnagement bearing 1 (Odd)
4. Engagement bearing sleeve
5. Clutch engagement fork


Dual Clutch Assembly Repair procedures
Removal 1. Remove the dual clutch transmission from the vehicle. (Refer to Dual Clutch System - "DCT") 2. Remove the reta ...

Clutch Engagement Fork and Engagement Bearing Repair procedures
Removal 1. Remove the dual clutch assembly. (Refer to Dual Clutch System - "Dual Clutch Assembly") 2. Remove the clutch e ...
