Hyundai Kona: Driveshaft Assembly / TJ Joint Components and components location

Hyundai Kona (OS) 2018-2023 Service Manual / Driveshaft and axle (2WD-FF) / Driveshaft Assembly / TJ Joint Components and components location

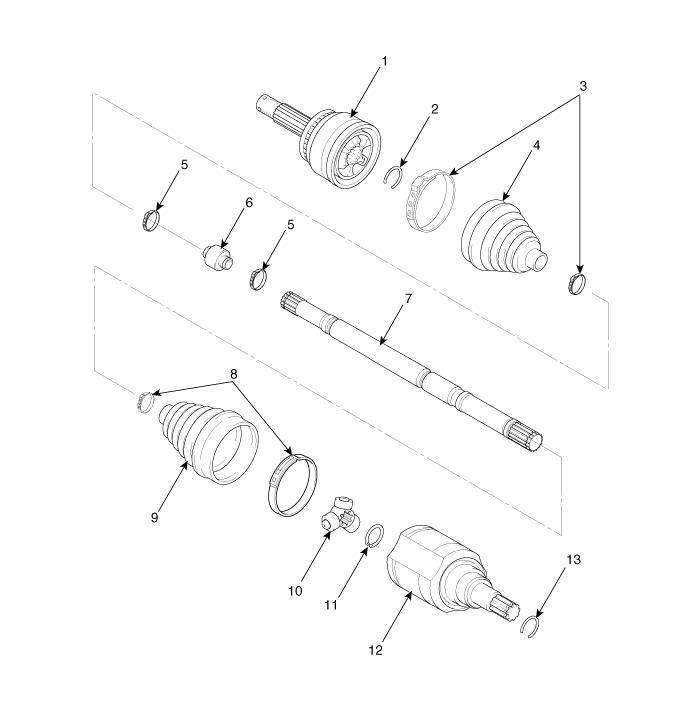

Components (1)

[Gamma 1.6 T-GDI, Nu 2.0 MPI]

1. BJ assembly
2. BJ circlip
3. BJ boot band
4. BJ boot
5. Dynamic damper band

6. Dynamic damper
7. Shaft
8. TJ boot band
9. TJ boot

10. Spider assembly
11. Snap ring
12. TJ case
13. Circlip

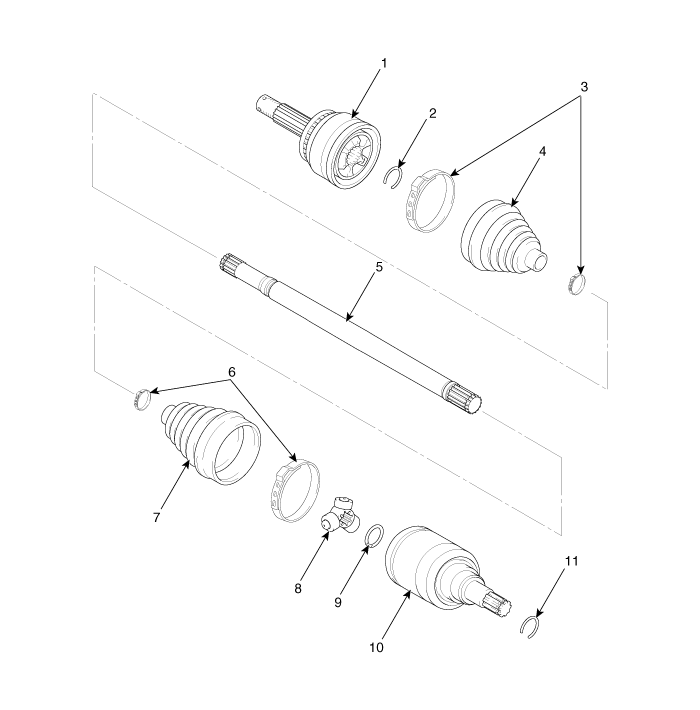

Components (2)

[Kappa 1.0 T-GDI]

[LH]

1. BJ assembly
2. BJ circlip
3. BJ boot band
4. BJ boot

5. Shaft
6. TJ boot band
7. TJ boot
8. Spider assembly

9. Snap ring
10. TJ case
11. Circlip

[RH]

1. BJ assembly
2. BJ circlip
3. BJ boot band
4. BJ boot
5. Dynamic damper band

6. Dynamic damper
7. Shaft
8. TJ boot band
9. TJ boot

10. Spider assembly
11. Snap ring
12. TJ case
13. Circlip

Front Driveshaft Repair procedures

Removal [Gamma 1.6 T-GDI, Nu 2.0 MPI] 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. 2. ...

TJ Joint Repair procedures

Disassembly • Special grease must be applied to the driveshaft joint. Do not s ...
