Hyundai Kona: Fuse/Relay panel description / Driver’s side fuse panel
.png)

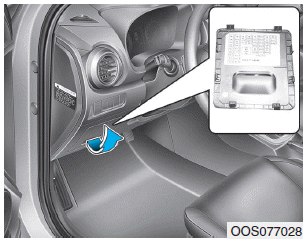

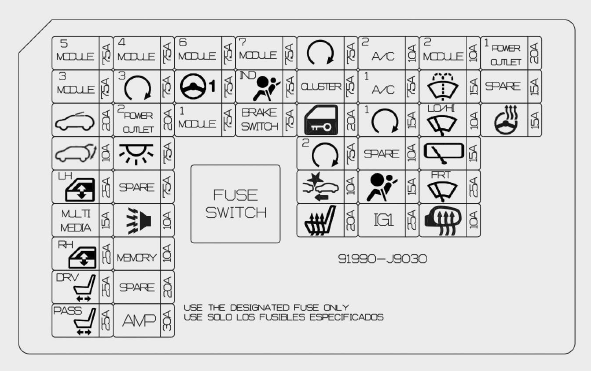

Inside the fuse/relay box covers, you can find the fuse/relay label describing fuse/relay names and ratings.
Information
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse box on your vehicle, refer to the fuse box label.
.png)

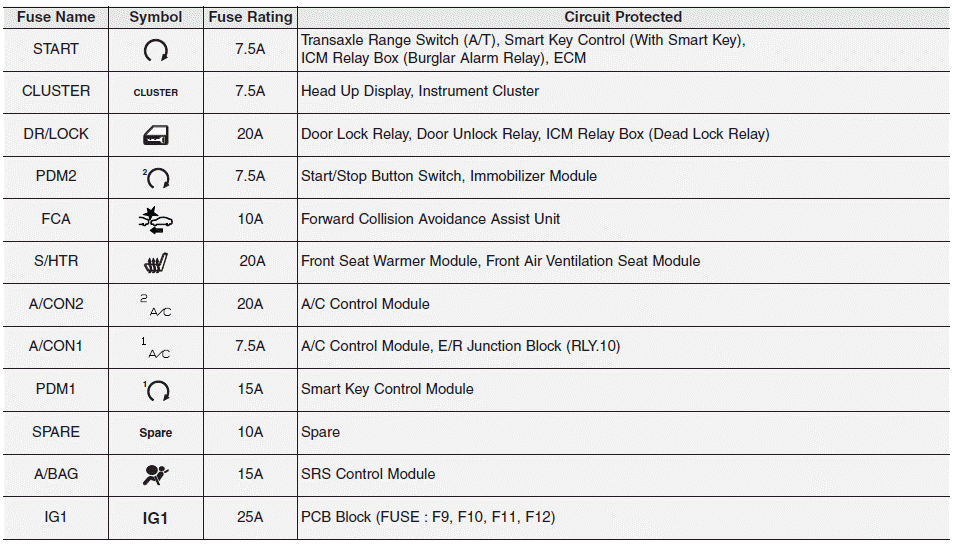

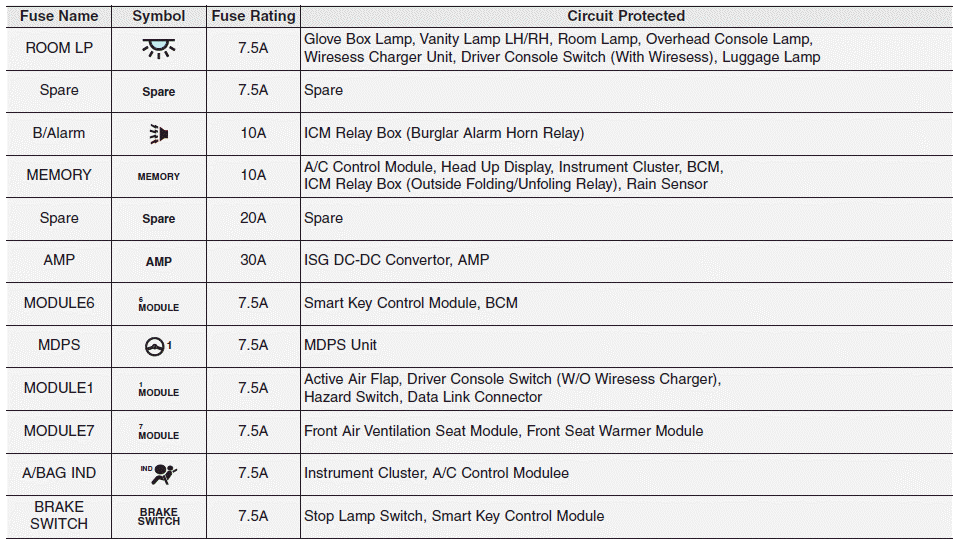

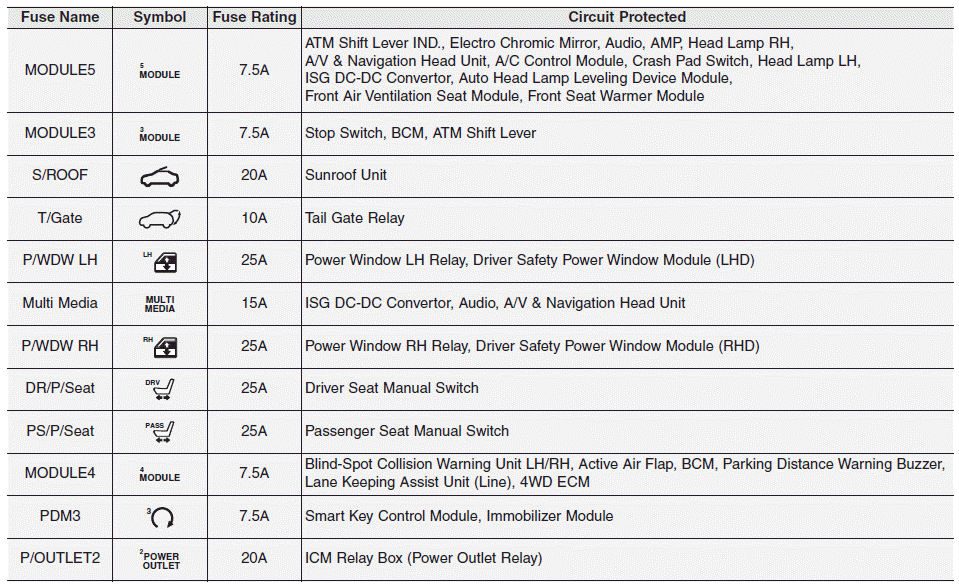

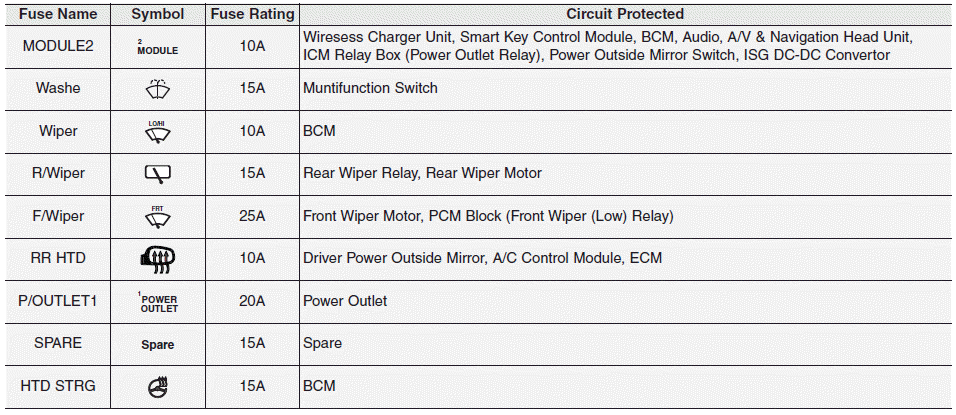

Driver's side fuse Panel
.png)
.png)
.png)
.png)
Engine compartment fuse panel
Inside the fuse/relay box covers, you can find the fuse/relay label describing
fuse/relay names and ratings.
Information
Not all fuse panel descriptions in this manual may be applicable to your vehi ...
