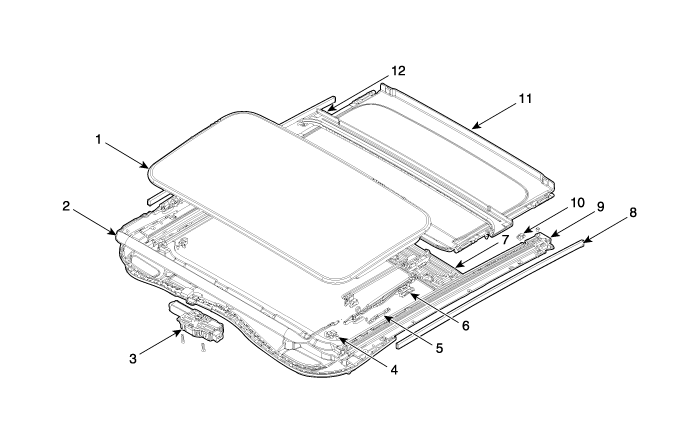

Components

1. Glass panel assembly
2. Deflector
3. Motor assembly
4. Spring base assembly
5. Seth plate assembly
6. Guide assembly

7. Frame sub assembly
8. Seal tape
9. Rear drip
10. Stopper
11. Sunshade assembly
12. Drip rail assembly
