Hyundai Kona: Crash Pad / Components and components location

Hyundai Kona (OS) 2018-2025 Service Manual / Body (Interior and Exterior) / Crash Pad / Components and components location

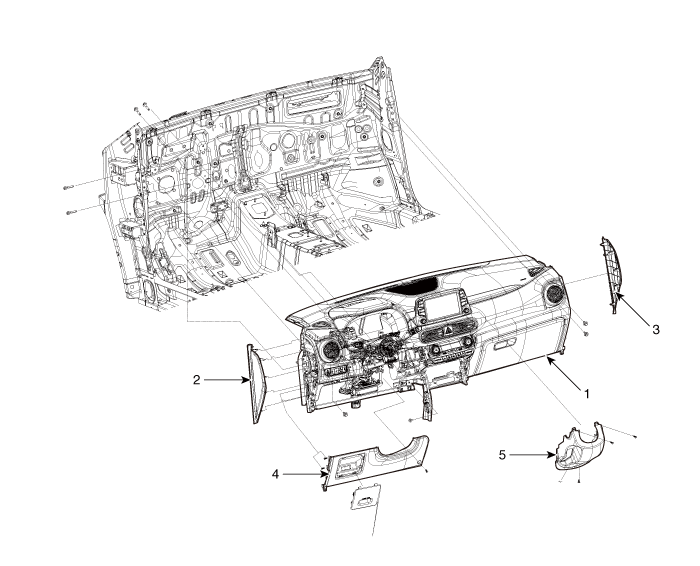

Components (1)

1. Crash pad assembly
2. Crash pad side cover [LH]
3. Crash pad side cover [RH]

4. Crash pad lower panel
5. Steering column shroud lower panel

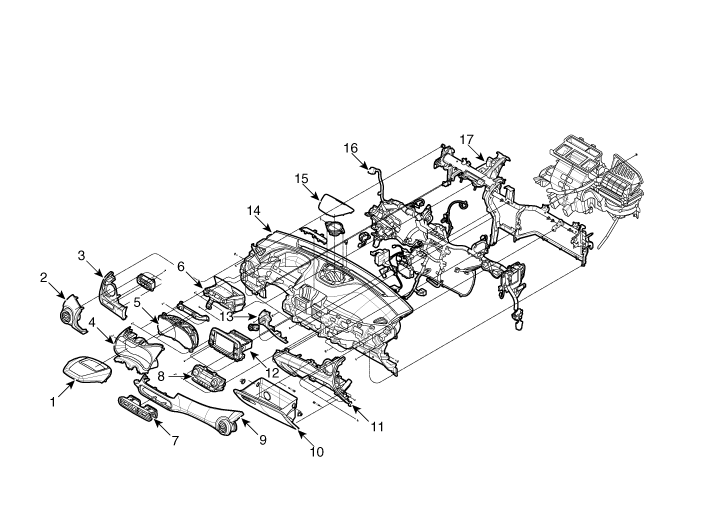

Componets (2)

1. Cluster fascia upper panel
2. Side airvent duct assembly [LH]
3. Crash pad garnish assembly [LH]
4. Cluster fascia lower panel
5. Cluster assembly
6. Head up display
7. Center airvent duct assembly
8. Heater & A/C control assembly
9. Crash pad garnish assembly [RH]

10. Glove box
11. Glove box housing cover
12. Audio assembly
13. Crash pad center panel assembly
14. Main crash pad assembly
15. Center speaker grill
16. Crash pad wiring
17. Cowl cross bar assembly
