Hyundai Kona: Front Bumper / Components and components location
Hyundai Kona (OS) 2018-2026 Service Manual / Body (Interior and Exterior) / Front Bumper / Components and components location

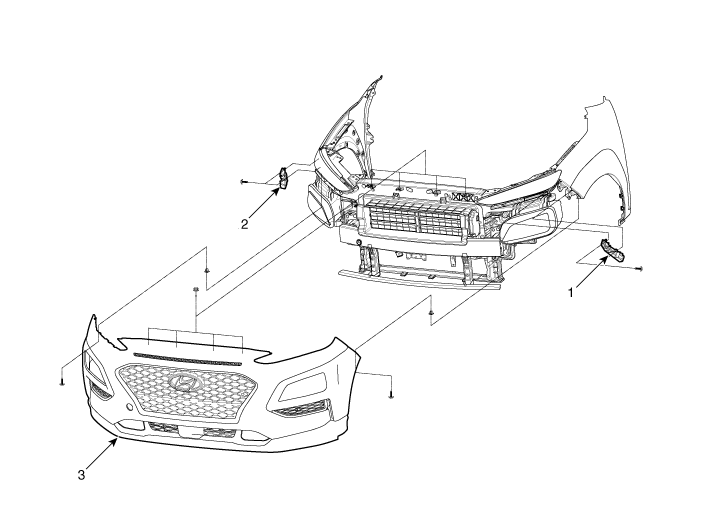

| Components |
| 1. Front bumper side bracket
[LH] 2. Front bumper side bracket [RH] |
3. Front bumper cover |
Front Bumper
...
Front Bumper Cover Components and components location
Component Location
1. Front bumper cover
...
