Hyundai Kona: Horn / Components and components location
Hyundai Kona (OS) 2018-2020 Service Manual / Body Electrical System / Horn / Components and components location

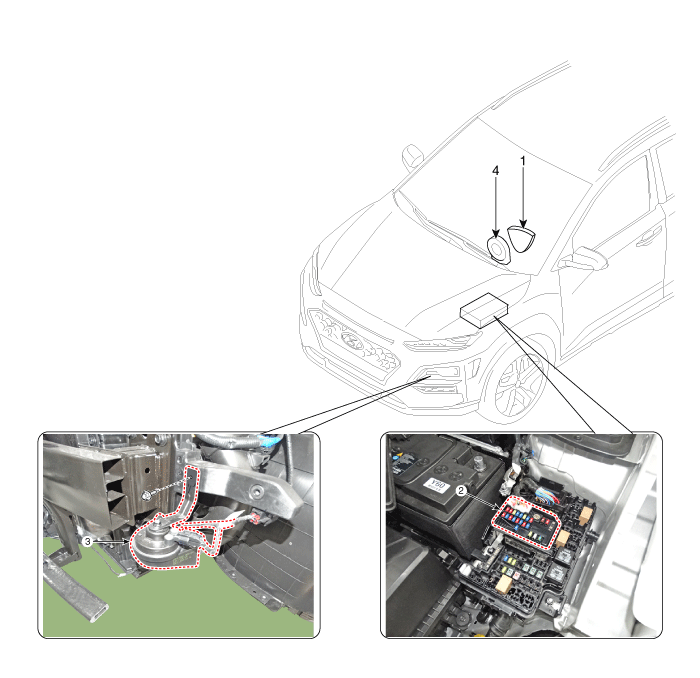

| Component Location |
| 1. Horn switch 2. Horn relay (Built - in PCB Block) |
3. Horn 4. Clock spring |
Horn
...
Repair procedures
Removal
1.
Remove the front bumper cover.
(Refer to Body - "Front Bumper Cover")
2.
Remove the horn (A) after loosening t ...
