Hyundai Kona: AVN System / Components and components location

Hyundai Kona (OS) 2018-2020 Service Manual / Body Electrical System / AVN System / Components and components location

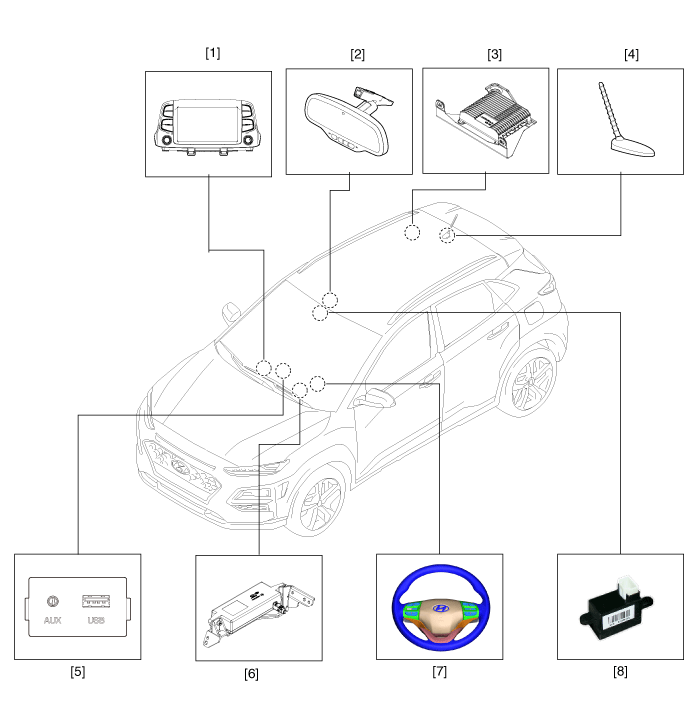

Component Location

1. AVN head unit (8inch)
2. Bluelink keyboard [4.0 (8inch)]
3. External amplifier [4.0 (8inch)]
4. Roof antenna

5. Multimedia jack
6. Wif & LTE Antenna [4.0 (8inch)]
7. Steering wheel remote control
8. Hands-free mic (Built-in overhead console)
