Hyundai Kona: Cylinder Block / Components and components location

Hyundai Kona (OS) 2018-2026 Service Manual / Engine Mechanical System / Cylinder Block / Components and components location

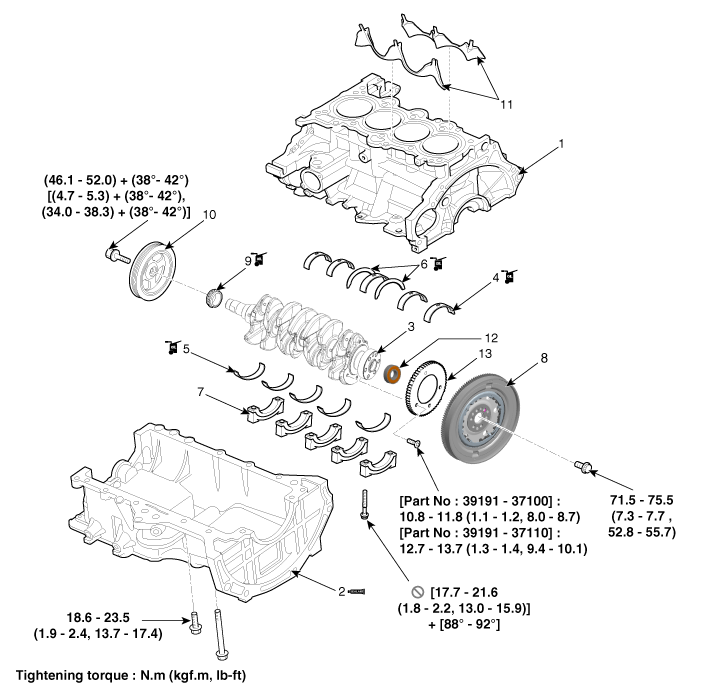

Components

1. Cylinder block
2. Ladder frame
3. Crankshaft
4. Crankshaft upper bearing
5. Crankshaft lower bearing

6. Thrust bearing
7. Main bearing cap
8. External damper flywheel
9. Crankshaft sproket
10. Crankshaft pulley

11. Water jacket insert
12. Pilot bearing
13. CKPS wheel

Cylinder Block

...

External Damper Flywheel Components and components location

Components 1. External damper flywheel ...
