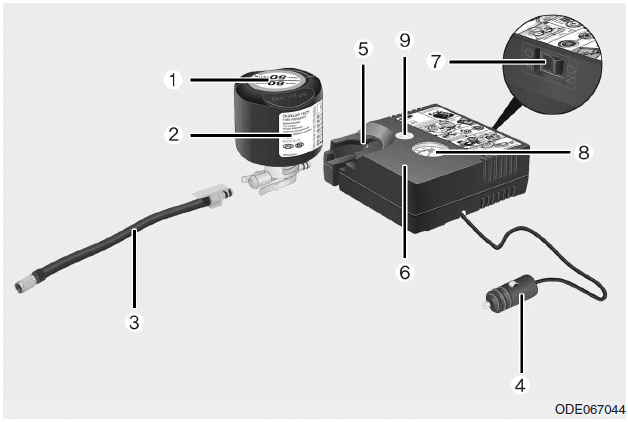

Hyundai Kona: If you have a flat tire (with tire mobility kit) - Type B / Components of the Tire Mobility Kit
.png)
1. Speed-restriction label
2. Sealant bottle and label with speed restriction
3. Filling hose from sealant bottle to wheel
4. Connectors and cable for the power
outlet direct connection
5. Holder for the sealant bottle
6. Compressor
7.
ON/OFF switch
8. Pressure gauge for displaying the tire inflation pressure
9.
Button for reducing the tire inflation pressure
Connectors, cable and connection hose are stored in the compressor housing.
Strictly follow the specified sequence, otherwise the sealant may escape under high pressure.
WARNING
Expired sealant
Do not use the Tire sealant after the sealant has expired (i.e. pasted the expiration date on the sealant container). This can increase the risk of tire failure.
WARNING
Sealant
- Keep out of reach of children.
- Avoid contact with eyes.
- Do not swallow.
Notes on the safe use of the Tire Mobility Kit
Park your car at the side of the road so that you can work with the Tire
Mobility Kit away from moving traffic.
To be sure your vehicle will not move, even when you're on fairly level
ground, a ...
Using the Tire Mobility Kit
CAUTION
Detach the speed restriction label (1) from the sealant bottle (2), and place
it in a highly visible place inside the vehicle such as on the steering wheel to
remind the driver not to drive ...
