Hyundai Kona: Trip computer / Digital speedometer ON/OFF
.png)

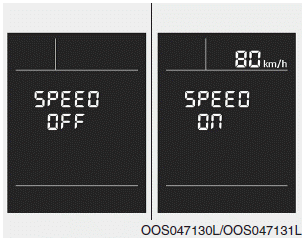

The digital speedometer can be turned on and off.
To turn on the digital speedometer, press the RESET button on the steering wheel for more than one second when “SPEED OFF” is displayed. To turn off the digital speedometer, press the RESET button for more than one second when “SPEED ON” is displayed.
.png)

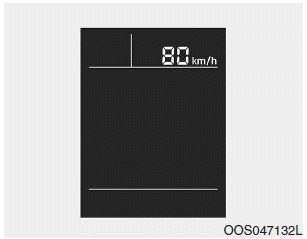

This message shows the speed of the vehicle when the digital speedometer is turned on.
Trip modes
To change the trip mode, press the TRIP button on the steering wheel.
Distance To Empty (1)
The distance to empty is the estimated distance the vehicle can be driven
with the remaining fuel.
I ...
Service reminder
If the remaining mileage or days is below 1,500 km or 30 days, the service reminder
will be displayed with a warning sound for a few seconds each time you turn the
ignition switch to the ON positio ...
