Hyundai Kona: Trip computer and service reminder (for cluster type A) / Service reminder

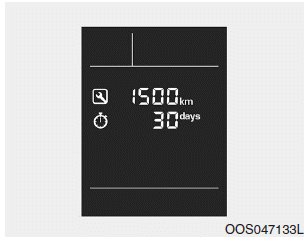

If the remaining mileage or days is below 1,500 km or 30 days, the service reminder will be displayed with a warning sound for a few seconds each time you turn the ignition switch to the ON position.

Information

To change or deactivate the service interval, consult an authorized HYUNDAI dealer.

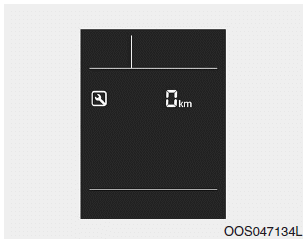

If one of the specified service interval (mileage or days) reaches “0”, the service symbol () will blink for a few seconds each time you turn ON the vehicle.

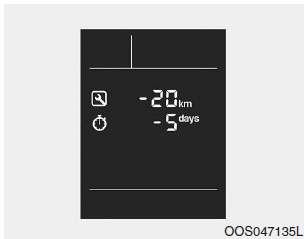

If you exceed the specified service interval, the service symbol () will blink for a few seconds each time you turn ON the vehicle.

To reset the service interval, press the RESET button for more than 5 seconds and then when the km (miles) and days blink press the RESET button for more than 1 second.

If the service interval is not set, the service symbol () will not be displayed.

Digital speedometer ON/OFF
The digital speedometer can be turned on and off. To turn on the digital speedometer, press the RESET button on the steering wheel for more than one second when “SPEED OFF” is displayed. To turn ...

Trip computer (type B, type C)
The trip computer is a microcomputer- controlled driver information system that displays information related to driving. Information Some driving information stored in the trip computer (for example ...
