Hyundai Kona: Where are the air bags? / Driver’s and passenger’s front air bags

Your vehicle is equipped with a Supplemental Restraint System (SRS) and lap/shoulder belts at both the driver and passenger seating positions.

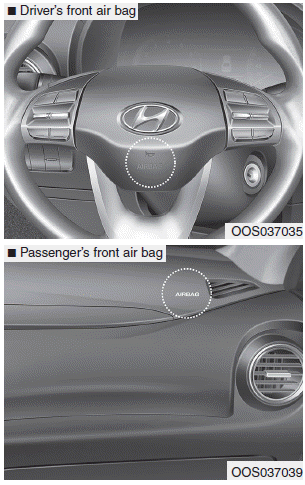

The SRS consists of air bags which are located in the center of the steering wheel, in the driver’s side lower crash pad below the steering wheel, and the passenger's side front panel pad above the glove box.

The air bags are labeled with the letters “AIR BAG” embossed on the pad covers.

The purpose of the SRS is to provide the vehicle's driver and front passengers with additional protection than that offered by the seat belt system alone in case of a frontal impact of sufficient severity.

WARNING

To reduce the risk of serious injury or death from inflating front air bags, take the following precautions:

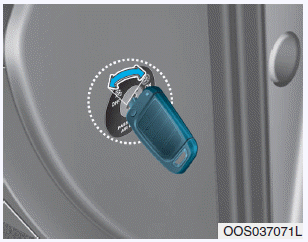

Passenger’s front air bag ON/OFF switch

The purpose of the switch is to disable the passenger’s front air bag in order to transport occupants who are at increased risk for air bag-related injury due to age, size, or medical condition.

To deactivate the passenger’s front air bag:

Insert the key or a similar rigid device into the passenger’s front air bag ON/OFF switch and turn it to the OFF position. The passenger air bag OFF indicator () will illuminate and stay on until the passenger’s front air bag is reactivated.

To reactivate the passenger’s front air bag:

Insert the key or a similar rigid device into the passenger’s front air bag ON/OFF switch and turn it to the ON position. The passenger air bag ON indicator () will illuminate and stay on for 60 seconds.

Information

The passenger’s front air bag ON/OFF indicator illuminates for about 4 seconds after the ignition switch is placed in the ON position.

WARNING

Never allow an adult passenger to ride in the front passenger seat when the passenger air bag OFF indicator is illuminated. During a collision, the air bag will not inflate if the indicator is illuminated. Turn on the passenger’s front air bag or have your passenger move to the rear seat.

WARNING

If the passenger’s front air bag ON/OFF switch malfunctions, the following conditions may occur:
