Hyundai Kona: Front Door / Front Door Trim Repair procedures

Hyundai Kona (OS) 2018-2020 Service Manual / Body (Interior and Exterior) / Front Door / Front Door Trim Repair procedures

Replacement

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Be careful not to scratch the door trim and other parts.
1.
Using a screwdriver or remover, remove the front door quadrant inner cover (A).
2.
Using a flat-tip or remover, remove the front door pull handle mounting cap (A).
3.

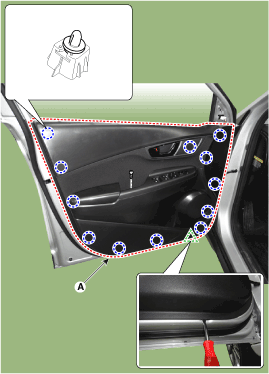

After loosening the mounting screws, remove the lower part of the front door trim (A) using a flat-tip screwdriver.
4.
Remove the front door inside handle cage (A).
5.
Disconnect the front door twitter speaker connector (A), and window switch connector (B), mirror switch connector (C).
6.
To install, reverse removal procedure.

•
Make sure the connector is connected properly.
•
Make sure the door locks / unlocks and opens / closes properly.
•
Replace any damaged clips (or pin-type retainers).
•
Make sure the glass is operated properly.
