Hyundai Kona: Front Seat / Front Seat Assembly Components and components location

Hyundai Kona (OS) 2018-2021 Service Manual / Body (Interior and Exterior) / Front Seat / Front Seat Assembly Components and components location

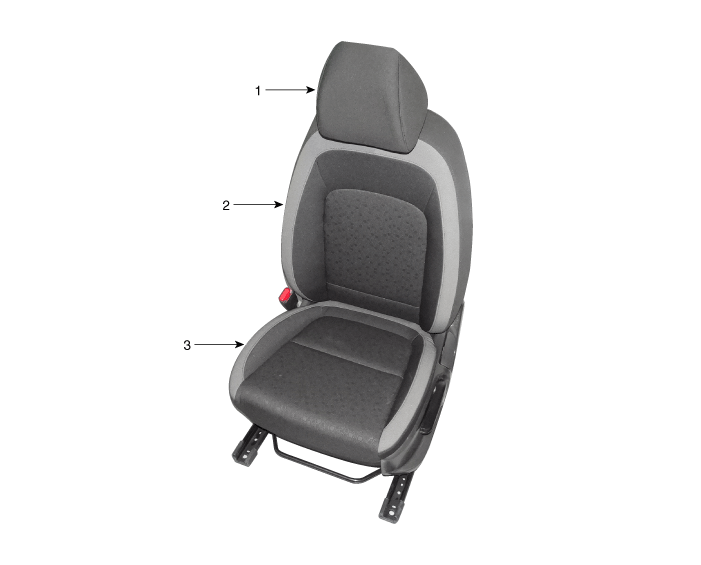

Component Location

1. Front seat headrest
2. Front seat back cover
3. Front seat cushion cover

Front Seat
...

Front Seat Assembly Repair procedures
Replacement 1. Open the cover and loosen the front seat mounting bolts. [Front] Tightening torque : 49.0 - 63.7 N.m (5. ...
