Hyundai Kona: LCD display (cluster type B,C) / LCD display control

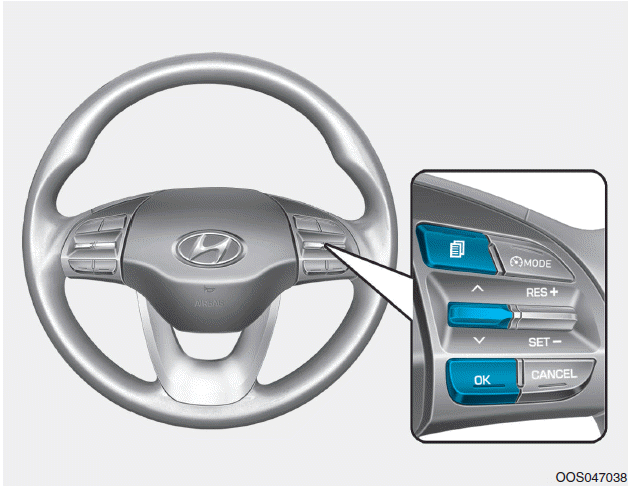

The LCD display modes can be changed by using the control buttons.

(1) : MODE button for changing modes
(2) , : MOVE switch for changing items
(3) OK : SELECT/RESET button for setting or resetting the selected item

LCD display (cluster type B,C)
...

LCD display modes
...
