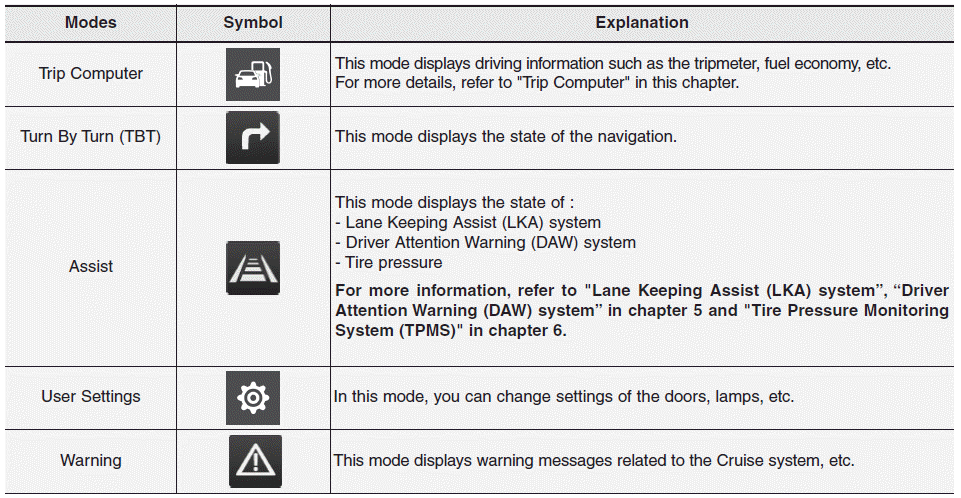

Hyundai Kona: LCD display (cluster type B,C) / LCD display modes
.png)
- Shift to P to edit settings / Engage parking brake to edit settings
- Quick guide
- Trip computer mode
- Turn By Turn (TBT) mode
- Assist mode
- Warning message mode
- User settings mode
LCD display control
The LCD display modes can be changed by using the control buttons.
(1) : MODE button for changing modes
(2) ,
: MOVE switch for changing items (3)
OK : SELECT/RESET button for setting or resetting ...
Shift to P to edit settings / Engage parking brake to edit settings
This warning message illuminates if you try to select an item from the User Settings
mode while driving.
- Manual transmission
For your safety, change the User Settings after engaging the parking bra ...
