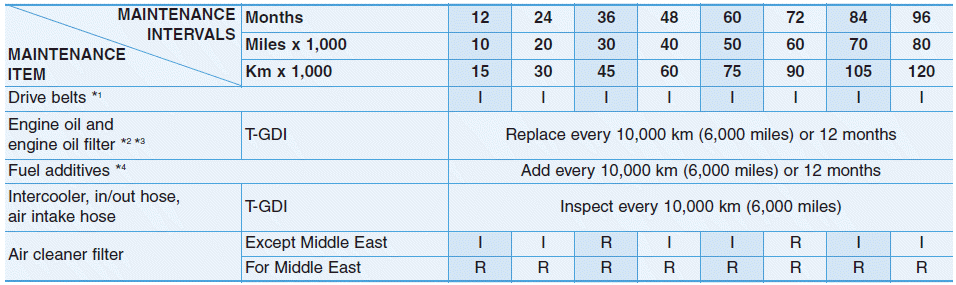

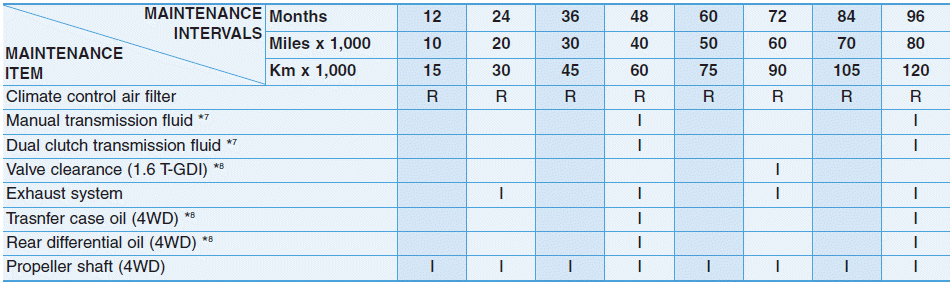

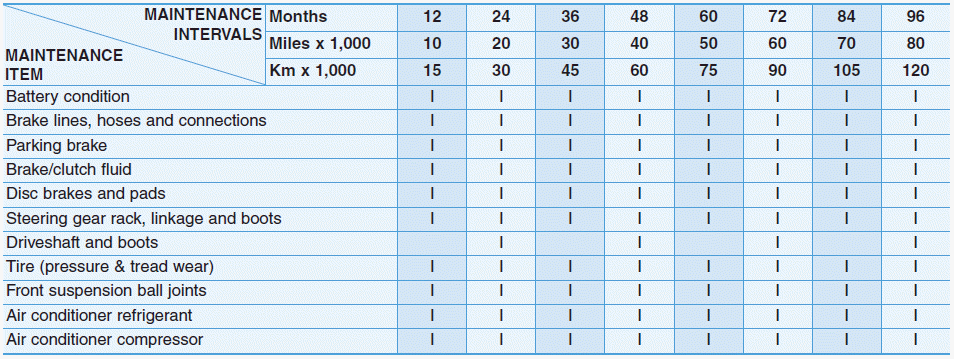

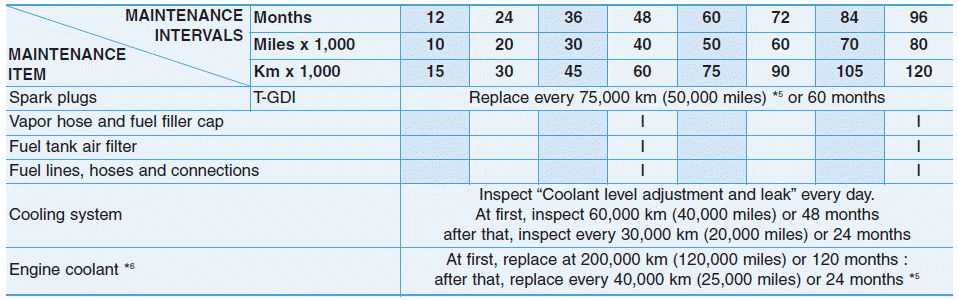

Hyundai Kona: Scheduled maintenance services / Normal Maintenance Schedule (Gasoline Engine, except Europe)
.png)
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace
or change.
.png)
.png)
.png)
Maintenance Under Severe Usage and Low Mileage Conditions (Gasoline Engine,
for Europe)
The following items must be serviced more frequently on cars mainly used under
severe and low mileage driving conditions. Refer to the chart below for the appropriate
maintenance intervals.
R : Repl ...
Maintenance Under Severe Usage and Low Mileage Conditions (Gasoline Engine,
except Europe)
The following items must be serviced more frequently on cars mainly used under
severe driving conditions. Refer to the chart below for the appropriate maintenance
intervals.
R : Replace
I : Inspect ...
