Hyundai Kona: To activate the ISG system / Prerequisite for activation
The ISG system operates in the following situations.
- The driver's seatbelt is fastened.
- The driver's door and the hood are closed.
- The brake vacuum pressure is adequate.
- The battery is sufficiently charged.
- The outside temperature is between -20 °C and 35 °C (-4 °F and 95 °F).
- The
engine coolant temperature is not too low.
- The system is not in the diagnostic
mode.
- The steering wheel is not steered excessively. (for dual clutch transmission
vehicle)
- The vehicle is driven on a steep incline. (for dual clutch transmission
vehicle)
Information
.png)
- The ISG system is not activated, when the prerequisites to activate
the ISG system are unsatisfied. In this case, the ISG OFF button indicator illuminates,

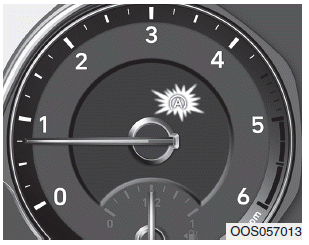

and the auto stop indicator (
.png)
) illuminates
in yellow on the instrument cluster. - When the above indicator remains illuminated on the instrument cluster, we recommend that you have the IGS system checked by an authorized HYUNDAI dealer.
Auto stop
To stop the engine in idle stop mode
Manual transmission vehicle
1. Decrease the vehicle speed to 5 km/h (3 mph).
2. Set the gear in N (Neutral).
3. Release the clutch pedal.
The auto stop indicator ...
