Hyundai Kona: Specifications & Consumer information / Refrigerant label

Hyundai Kona (OS) 2018-2024 Owners Manual / Specifications & Consumer information / Refrigerant label

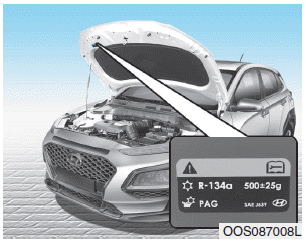

The refrigerant label provides information such as refrigerant type and amount.

The label is located on the underside of the hood.

Air conditioner compressor label

A compressor label informs you the type of compressor your vehicle is equipped with such as model, supplier part number, production number, refrigerant (1) and refrigerant oil (2). ...

Declaration of conformity

The radio frequency components of the vehicle comply with requirements and other relevant provisions of Directive 1995/5/EC. Further information including the manufacturer's declaration of conformit ...
