Hyundai Kona: Safety system of your vehicle / Seats
.png)

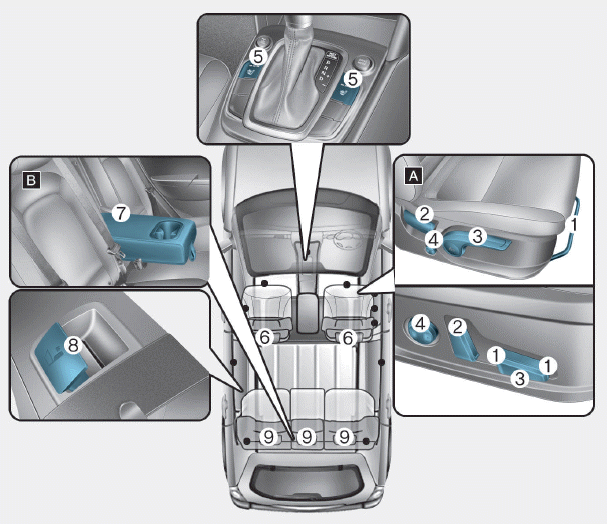

â– Left-Hand drive type
Front seat
(1) Forward and backward
(2) Seatback angle
(3) Seat cushion height *
(4)
Lumbar support (Driver’s seat)*
(5) Seat warmer*/Air ventilation seat*
(6) Headrest
Rear seat
(7) Armrest*
(8) Seatback folding
(9) Headrest
.png)

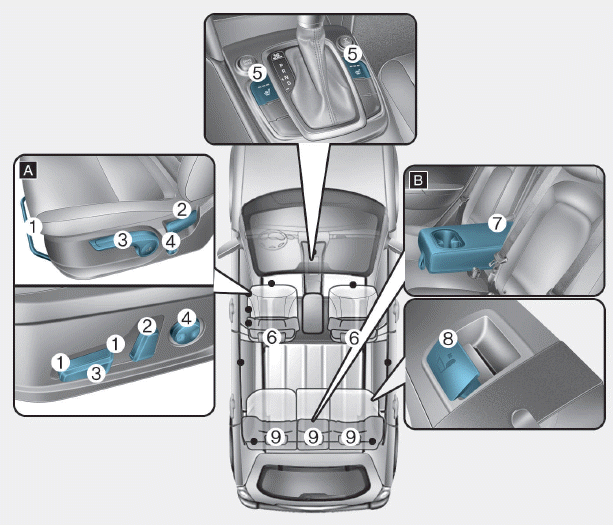

â– Right-Hand drive type
Front seat
(1) Forward and backward
(2) Seatback angle
(3) Seat cushion height *
(4)
Lumbar support (Driver’s seat)*
(5) Seat warmer*/Air ventilation seat*
(6) Headrest
Rear seat
(7) Armrest*
(8) Seatback folding
(9) Headrest
Important safety precautions
You will find many safety precautions and recommendations throughout this section,
and throughout this manual. The safety precautions in this section are among the
most important.
Always wear your s ...
Safety precautions
Adjusting the seats so that you are sitting in a safe, comfortable position plays
an important role in driver and passenger safety together with the seat belts and
air bags in an accident.
WARNING
D ...
