To use a sunvisor, pull it downward.

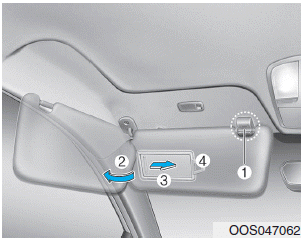

To use a sunvisor for a side window, pull it downward, unsnap it from the bracket (1) and swing it to the side (2).
To use the vanity mirror, pull down the sunvisor and slide the mirror cover (3).
Use the ticket holder (4) to hold tickets.
Information
Close the vanity mirror cover securely and return the sunvisor to its original position after use.
WARNING
For your safety, do not block your view when using the sunvisor.
NOTICE
Do not put several tickets in the ticket holder at one time. This could cause damage to the ticket holder.
