Hyundai Kona: Driver attention warning (DAW) system / System setting and activation
System setting
- The Driver Attention Warning (DAW) system is set to be in the OFF position,
when your vehicle is first delivered to you from the factory.
- To turn ON the Driver Attention Warning (DAW) system, turn on the engine,
and then select "User Settings Driver Assistance Driver Attention Warning High
Sensitivity/Normal Sensitivity" on the LCD display.
- The driver can select the Driver Attention Warning (DAW) system mode.
- Off : The Driver Attention Warning (DAW) system is deactivated.
- Normal
Sensitivity : The Driver Attention Warning (DAW) system alerts the driver of
his/her fatigue level or inattentive driving practices.
- High Sensitivity
: The Driver Attention Warning (DAW) system alerts the driver of his/her fatigue
level or inattentive driving practices faster than Normal mode.
- The set-up of the Driver Attention Warning (DAW) system will be maintained,
as selected, when the engine is re-started.

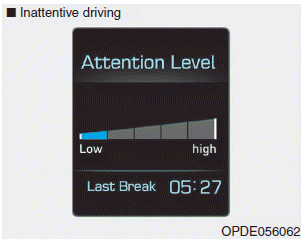

Display of the driver's attention level
.png)
.png)
- The driver can monitor their driving conditions on the LCD display. The
DAW screen will appear when you select the ASSIST mode tab ( ) on the LCD display
if the system is activated. (For more details, refer to "LCD Display Modes"
in chapter 3.)
- The driver's attention level is displayed on the scale of 1 to 5. The
lower the level is, the more inattentive the driver is.
- The level decreases when the driver does not take a break for a certain
period of time.
- The level increases when the driver attentively drives for a certain period
of time.
- When the driver turns on the system while driving, it displays 'Last Break
time' and level.

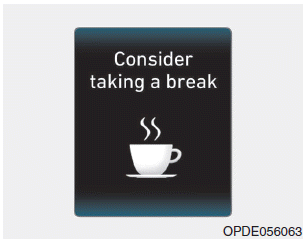

Take a break
.png)
- The "Consider taking a break" message appears on the LCD display and a
warning sounds in order to suggest the driver to take a break, when the driver’s
attention level is below 1.
- The Driver Attention Warning (DAW) system does not suggest the driver
to take a break, when the total driving time is shorter than 10 minutes.
The Driver Attention Warning (DAW) system displays the condition of the driver's
fatigue level and inattentive driving practices. ...
The last break time is set to 00:00 and the driver's attention level is
set to 5 (very attentive) when the driver resets the Driver Attention Warning
(DAW) system.
The Driver Attention Warning ...
