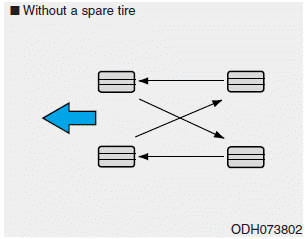

To equalize tread wear, HYUNDAI recommends that the tires be rotated every 12,000 km (7,500 miles) or sooner if irregular wear develops. During rotation, check the tires for correct balance.
When rotating tires, check for uneven wear and damage. Abnormal wear is usually caused by incorrect tire pressure, improper wheel alignment, outof- balance wheels, severe braking or severe cornering. Look for bumps or bulges in the tread or side of the tire. Replace the tire if you find any of these conditions. Replace the tire if fabric or cord is visible. After rotation, be sure to bring the front and rear tire pressures to specification and check lug nut tightness (proper torque is 11~13 kgf·m [79~94 lbf·ft]).
Disc brake pads should be inspected for wear whenever tires are rotated.
Information
The outside and inside of the unsymmetrical tire is distinguishable. When installing an unsymmetrical tire, be sure to install the side marked "outside" face the outside. If the side marked "inside" is installed on the outside, it will have a negative effect on vehicle performance.
WARNING
Hyundai Kona (OS) 2018-2023 Service Manual: Front Seat Assembly Components and components location
Component Location
1. Front seat headrest
2. Front seat back cover
3. Front seat cushion cover
...
Hyundai Kona (OS) 2018-2023 Service Manual: Engine Coolant Temperature Sensor (ECTS) Description and operation
Description
Engine Coolant Temperature Sensor (ECTS) is located in the engine coolant passage
of the cylinder head for detecting the engine coolant temperature. The ECTS
uses a thermistor that changes resistance with the temperature.
The electrical resistance of the ECTS de ...
