Hyundai Kona: Speed Limit Control operation / To set speed limit
.png)

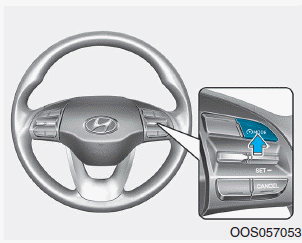

1. Press the .png)
button to turn the
system on. The speed limit indicator in the instrument cluster will illuminate.
.png)

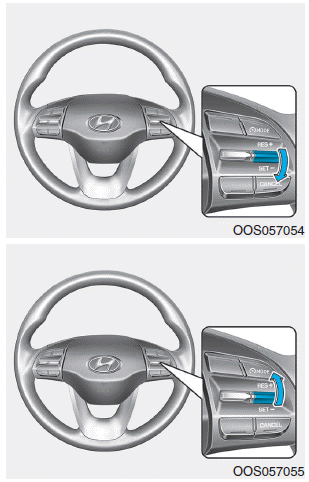

2. Push the toggle switch down (SET-).
3.
- Push the toggle switch up (RES+) or down (SET-), and release it at the desired speed.
- Push the toggle switch up (RES+) or down (SET-) and hold it. The speed will increase or decrease by 5 km/h.
The set speed limit will display on the instrument cluster.
If you would like to drive over the preset speed limit when you depress the accelerator pedal less than approximately 50%, the vehicle speed will maintain within speed limit.
However if you depress the accelerator pedal more than approximately 70%, you can drive over the speed limit. Then the set speed limit will blink and chime will sound until you return the vehicle speed within the speed limit.
Speed limit control switch
: Changes mode between cruise control
system and speed limit control system.
RES+: Resumes or increases speed limit control speed.
SET-: Sets or decreases speed limit control speed.
O (Cancel): Can ...
To turn off the speed limit control, do one of the following:
Press the button.
If you press O (cancel) button once, the set speed limit will cancel,
but it will not turn the system off. If you wish to resume the speed limit,
push the +RES or SET- toggl ...
