Hyundai Kona: Operating door locks from inside the vehicle / With the door lock button

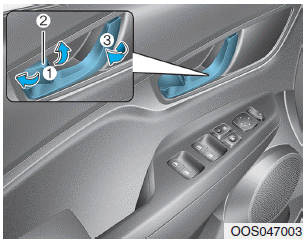

- To unlock a door, push the door lock button (1) to the “Unlock” position. The red mark (2) on the door lock button will be visible.
- To lock a door, push the door lock button (1) to the “Lock” position. If the door is locked properly, the red mark (2) on the door lock button will not be visible.
- To open a door, pull the door handle (3) outward.
- Front doors cannot be locked if the key is in the ignition switch and any front door is open.
- Doors cannot be locked if the smart key is in the vehicle and any door is open.
Information
If a power door lock ever fails to function while you are in the vehicle try one or more of the following techniques to exit:
Operate the door unlock feature repeatedly (both electronic and manual) while simultaneously pulling on the door handle.
Operate the other door locks and handles, front and rear.
Lower a front window and use the mechanical key to unlock the door from outside.
With the door handle
Front door
If the inner door handle is pulled when the door is locked, the door will unlock
and open.
Rear door
If the inner door handle is pulled once when the door is locked, the door will
unlock. ...
