Hyundai Kona: Front Suspension System / Components and components location

Hyundai Kona (OS) 2018-2026 Service Manual / Suspension System (NON-ECS) / Front Suspension System / Components and components location

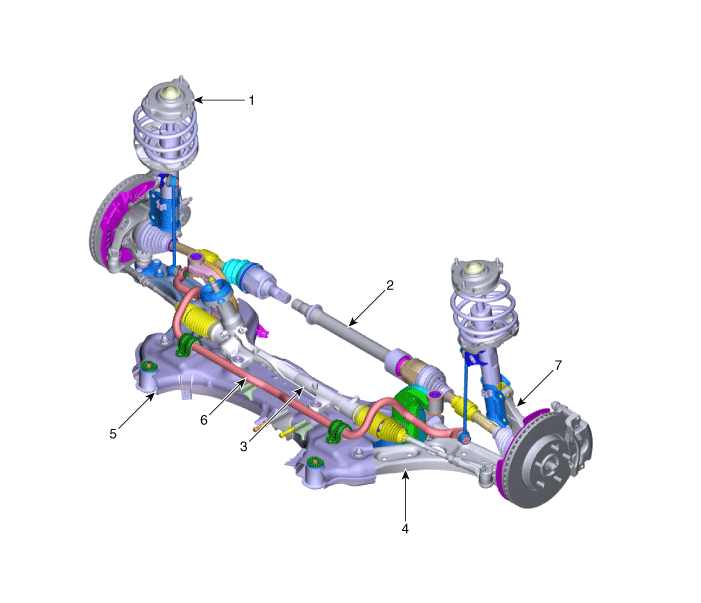

Components

1. Front strut assembly
2. Driveshaft
3. Steering gearbox
4. Front lower arm

5. Front sub frame
6. Front stabilizer bar
7. Front knuckle assembly
