Hyundai Kona: Front Suspension System / Front Strut Assembly Components and components location

Hyundai Kona (OS) 2018-2021 Service Manual / Suspension System (NON-ECS) / Front Suspension System / Front Strut Assembly Components and components location

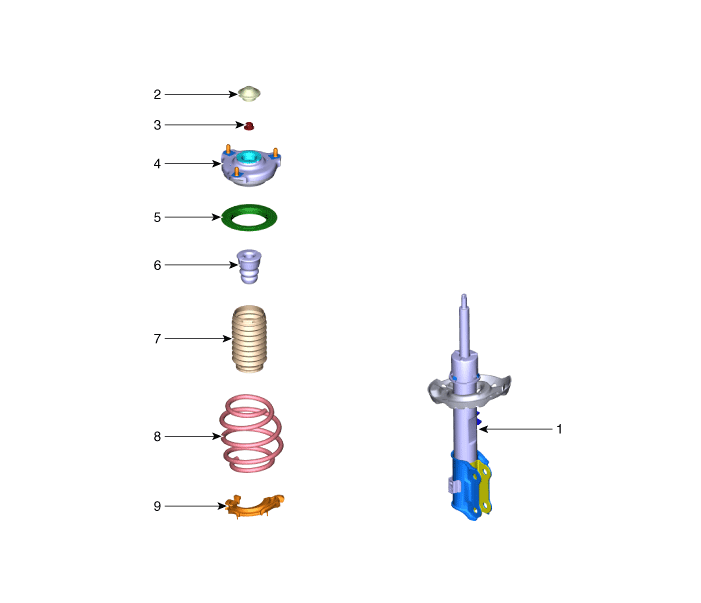

Components

1. Strut assembly
2. Insulator dust cover
3. Self locking nut
4. Insulator assembly & sturt bearing
5. Spring upper pad
6. Bumper rubber
7. Dust cover
8. Coil spring
9. Spring lower pad

Components and components location
Components 1. Front strut assembly 2. Driveshaft 3. Steering gearbox 4. Front lower arm 5. Front sub frame 6. Front stabilizer bar 7. Front knuckle ...

Front Strut Assembly Repair procedures
Removal 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. 2. Remove the front wheel and ...
