Hyundai Kona: Audio / Audio Remote Control Schematic diagrams

Hyundai Kona (OS) 2018-2024 Service Manual / Body Electrical System / Audio / Audio Remote Control Schematic diagrams

Circuit Diagram

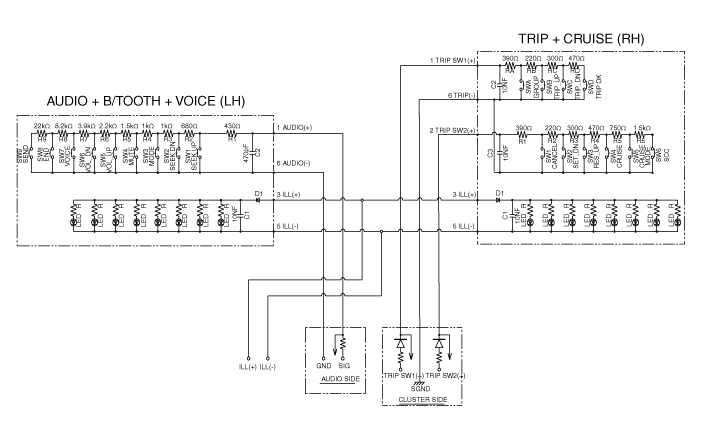

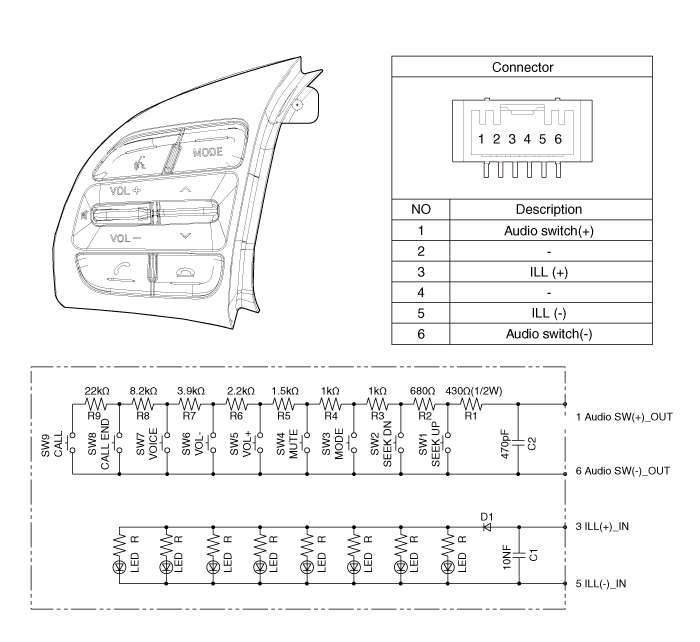

[Audio + B/Tooth + Voice]

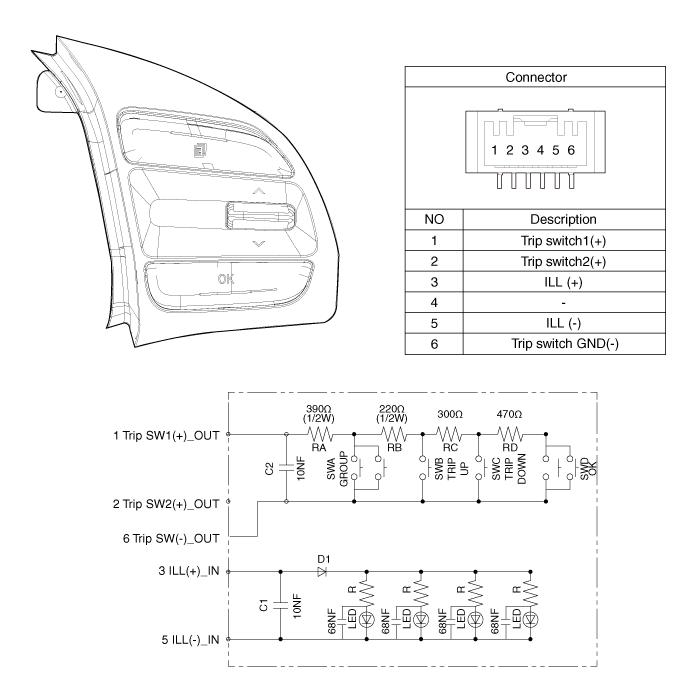

[Trip]

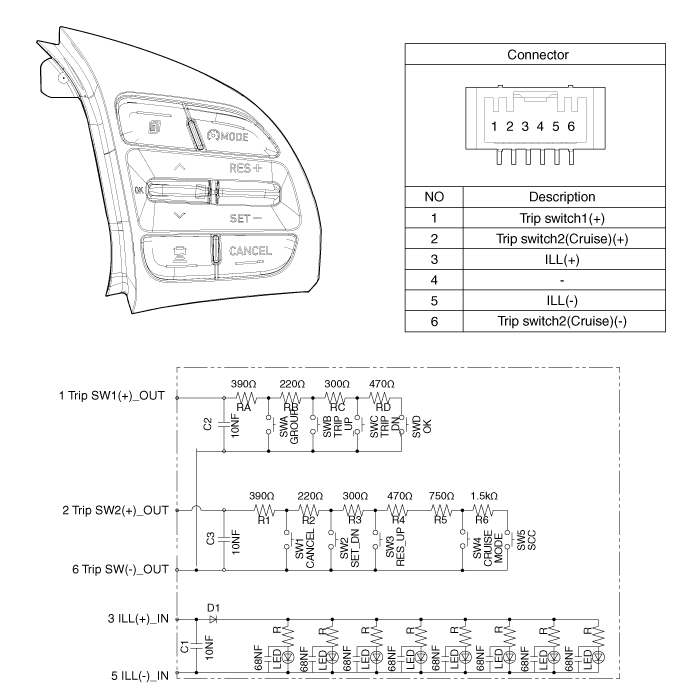

[Trip / Cruise]

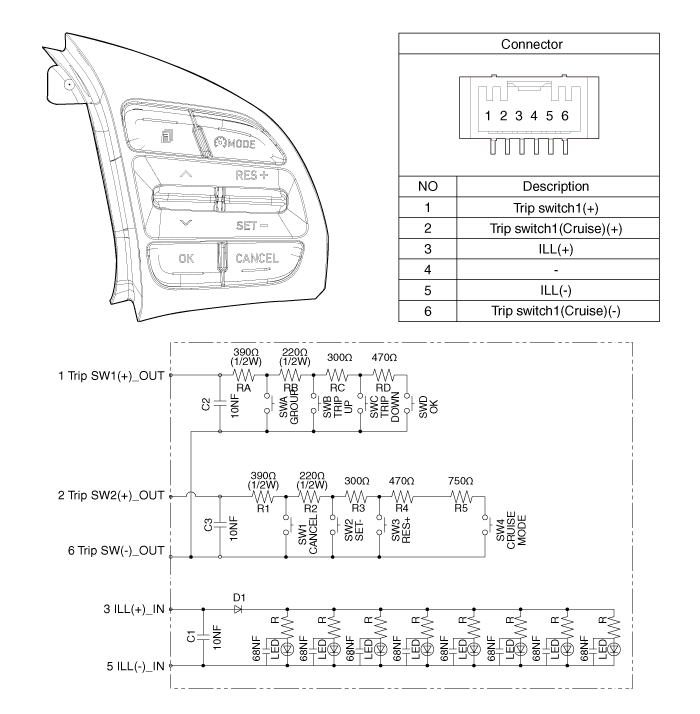

[Trip / Cruise/ Smart Cruise]

Audio Remote Control Components and components location
Components 1. Left Remote Control Switch (Audio + Hands free) 2. Right Remote Control Switch (Cruise+Trip Computer) ...

Audio Remote Control Repair procedures
Inspection 1. Check for resistance between terminals in each switch position (LH). [LH : Audio + Hands free] Switch ...
