Hyundai Kona: Exterior lights / Warning light and message

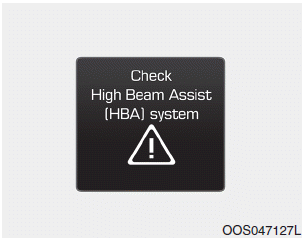

When the High Beam Assist (HBA) is not working properly, the warning message will come on for a few second. After the message disappears, the master warning light () will illuminate.

We recommend that you take your vehicle to an authorized HYUNDAI dealer and have the system checked.

CAUTION

The system may not operate normally in the below conditions.

When the light from on-coming or front vehicle is dim

When it is affected by an external condition

When the front visibility is poor
