Operating condition

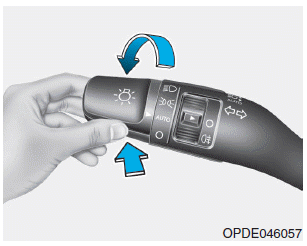

1.Place the light switch in the AUTO position.
2.Turn on the high beam by pushing the lever away from you.
3. The High Beam Assist (HBA) ()
indicator will illuminate.
4.The High Beam Assist (HBA) will turn on when vehicle speed is above 45km/h (25mph).
1) If the light switch is pushed away when the High Beam Assist (HBA) is operating, the High Beam Assist (HBA) will turn off and the high beam will be on continuously.
2) If the light switch is pulled towards you when the high beam is off, the high beam will turn on without the High Beam Assist (HBA) canceled. When you let go of the light switch, the lever will move to the middle and the high beam will turn off.
3) If the light switch is pulled towards you when the high beam is on by the High Beam Assist (HBA), the low beam will be on and the High Beam Assist (HBA) will turn off.
4) If the light switch is placed to the headlamp position, the High Beam Assist (HBA) will turn off and the low beam will be on continuously.
When the High Beam Assist (HBA) is operating, the high beam switches to low beam in the below conditions.
- When the headlamp of an on-coming vehicle is detected.
- When the tail lamp
of a vehicle in front is detected.
- When headlamp/tail lamp of bicycle/ motorcycle
is detected.
- When the surrounding is bright enough high beams are not needed.
- When streetlights or other lights are detected.
- When the light switch is not
in the AUTO position.
- When the High Beam Assist (HBA) is off.
- When vehicle
speed is below 35 km/h (22mph).
