Hyundai Kona: Convenient features of your vehicle / Automatic climate control system
.png)

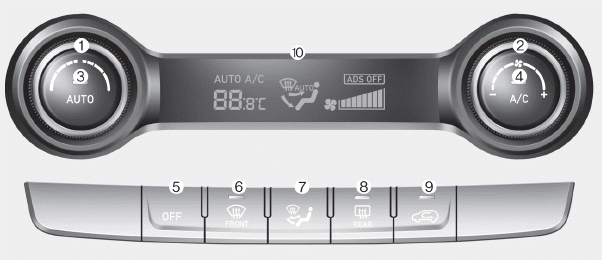

1. Temperature control knob
2. Fan speed control knob
3. AUTO (automatic
control) button
4. Air conditioning button
5. OFF button
6. Front windshield
defroster button
7. Mode selection button
8. Rear window defroster button
9. Air intake control button
10. Climate control information screen
- Automatic heating and air conditioning
- Manual heating and air conditioning
- System operation
- System maintenance
Air conditioning refrigerant label
The actual Air Conditioning refrigerant label in the vehicle may differ from
the illustration.
Each symbols and specification on air conditioning refrigerant label means as
below:
1. Classification ...
Automatic heating and air conditioning
The Automatic Climate Control System is controlled by setting the desired temperature.
1. Press the AUTO button. (3)
The modes, fan speeds, air intake and air-conditioning will be controlled automatic ...
