Hyundai Kona: Blind-Spot Collision Warning (BCW) / Blind-Spot Collision Warning Indicator Components and components location

Hyundai Kona (OS) 2018-2022 Service Manual / Body Electrical System / Blind-Spot Collision Warning (BCW) / Blind-Spot Collision Warning Indicator Components and components location

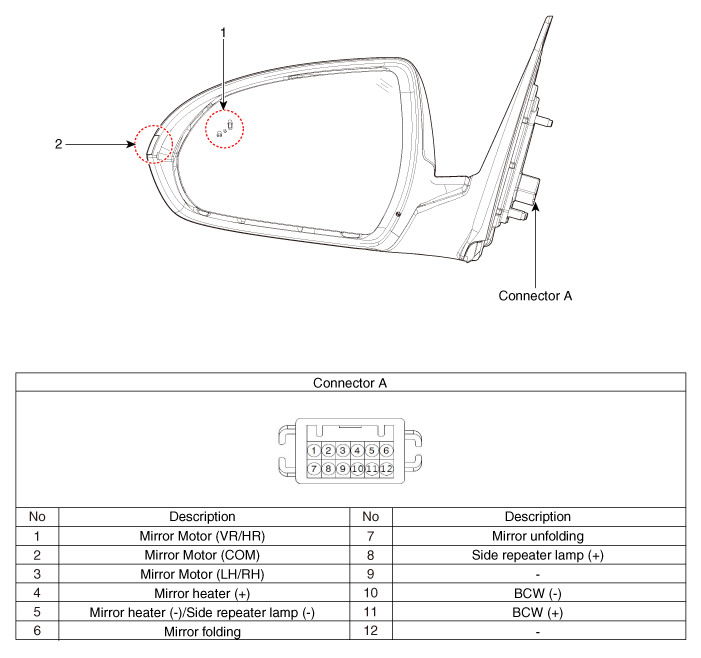

Components

1. BCW Indicator
2. Side repeater lamp
