Hyundai Kona: Parking Brake System / Components and components location

Hyundai Kona (OS) 2018-2021 Service Manual / Brake System / Parking Brake System / Components and components location

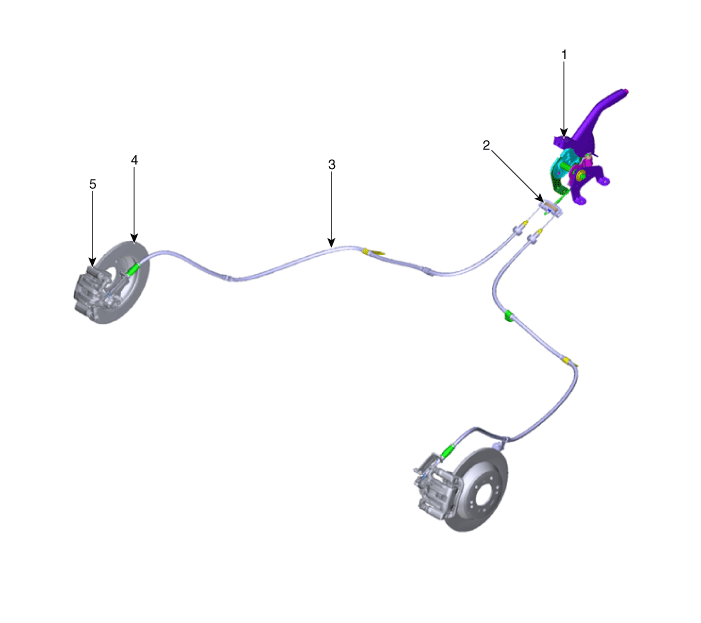

Components

1. Parking brake lever
2. Equalizer assembly
3. Parking brake cable

4. Brake disc
5. Brake caliper
