Component Location

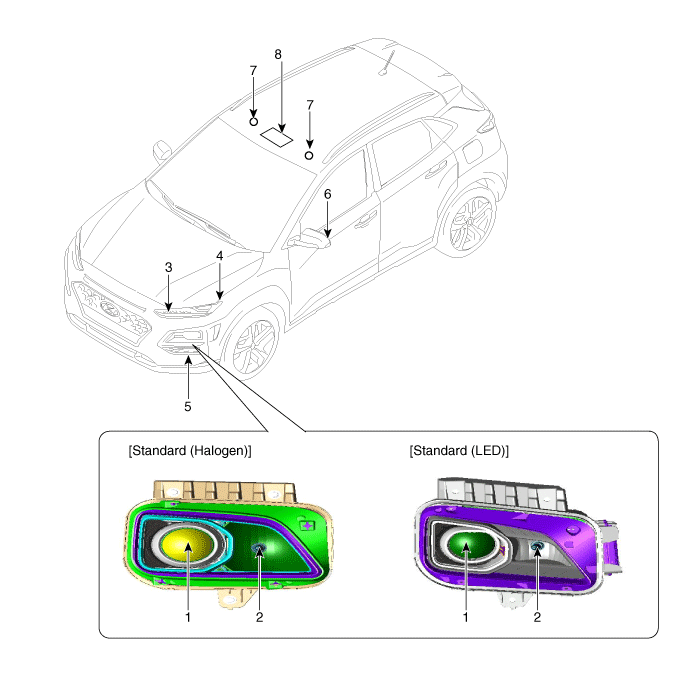

1. Head lamp (Low)
2. Head lamp (High)
3. Daytime Running Light (DRL)
4. Turn signal lamp

5. Fog lamp
6. Door mirror lamp
7. Vanity lamp
8. Map lamp

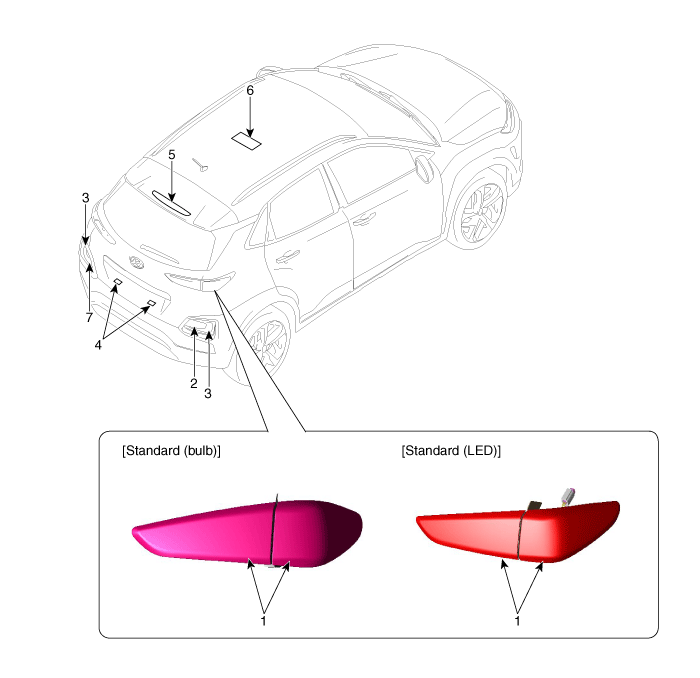

1. Tail lamp
2. Back up lamp (LHD) / Rear fog lamp (RHD)
3. Turn signal lamp
4. Lisence lamp

5. High mounted stop lamp
6. Room lamp
7. Rear fog lamp (LHD) / Back up lamp (RHD)

Specifications

Specification Item Type Bulb Watt (W) Front Head lamp Halogen Low ...

Head Lamps Components and components location

Components [Standard (LED) 1. Head lamp (Low) 2. Head lamp (High) 4. Dust cap [Standard (LED)] 1 ...
