Hyundai Kona: 4WD Control System / 4WD ECU Schematic diagrams

Circuit Diagram
1.
Terminal Operation
Terminal
Operation
1
CAN LOW
2
CAN HIGH
3
-
4
Pressure sensor signal
5
-
6
Lock mode switch
7
Motor B
8
Motor A
9
-
10
-
11
Pressure sensor power
12
Pressure sensor (Ground)
13
Battery voltage
14
Ground
15
IG. 1
16
-
17
-
18
-

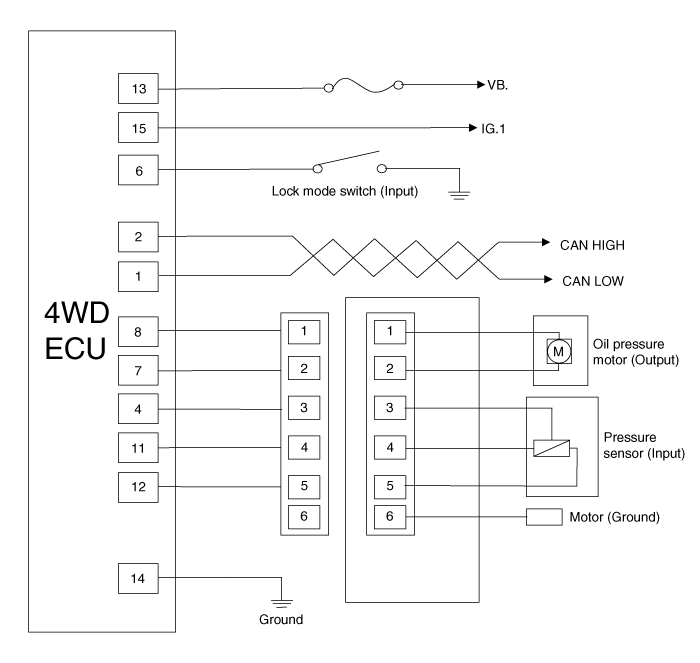

2.
Schematic Diagram
