Hyundai Kona (OS) 2018-2020 Service Manual / Body Electrical System / Lighting System / Head Lamps Components and components location

Components

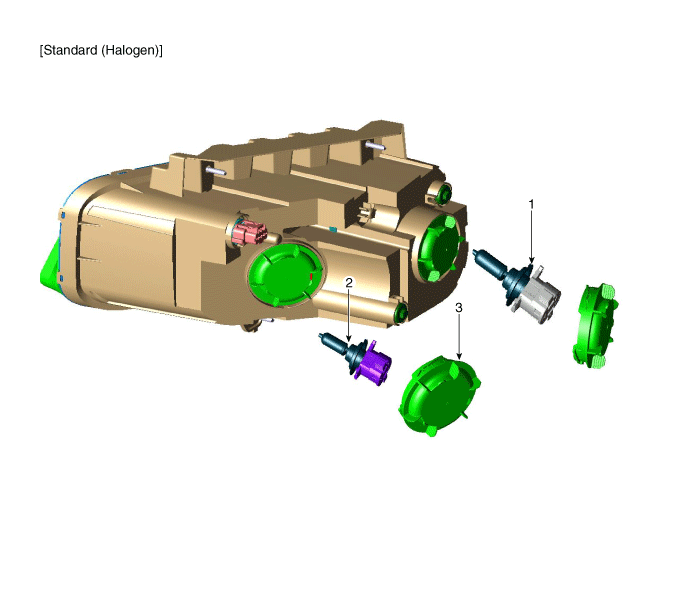

[Standard (LED)

1. Head lamp (Low)
2. Head lamp (High)
4. Dust cap

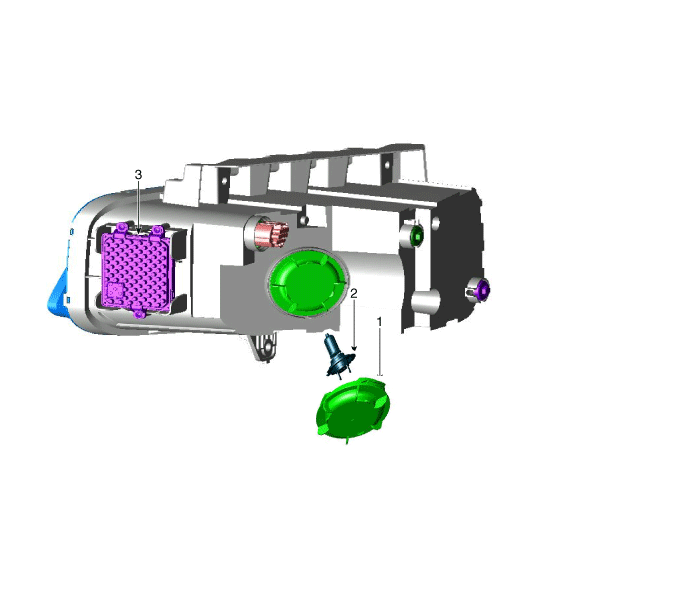

[Standard (LED)]

1. Dust cap
2. Statick banding light (SBL)
3. LDM module

Components and components location
Component Location 1. Head lamp (Low) 2. Head lamp (High) 3. Daytime Running Light (DRL) 4. Turn signal lamp 5. Fog lamp 6. Door mirror ...

Head Lamps Description and operation
Description 1. Bulb (1) Elements Xenon gas : Xenon gas activates the initial reaction for rapid il ...
