Hyundai Kona: MFC(Multi-Function Camera system) / Components and components location
Hyundai Kona (OS) 2018-2021 Service Manual / Body Electrical System / MFC(Multi-Function Camera system) / Components and components location

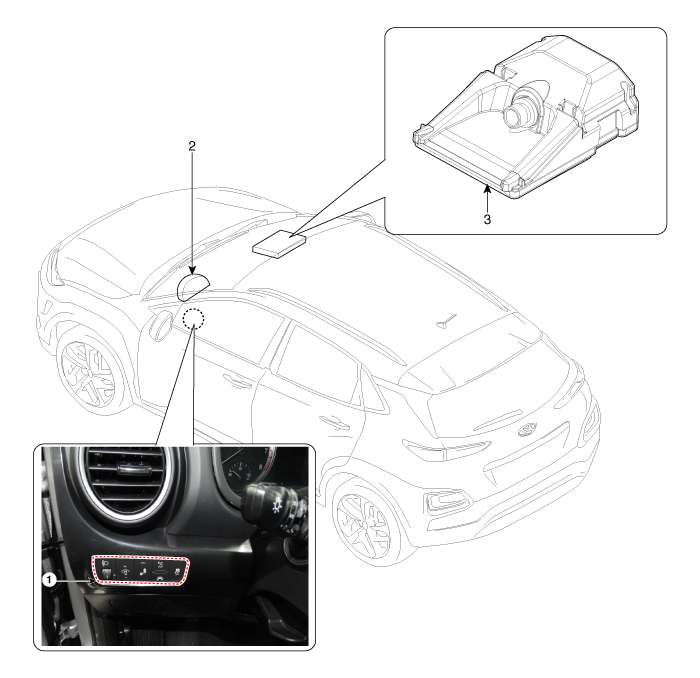

| Component Location |
| 1. LDW/LKA -ON/OFF Switch 2. Cluster |
3. Front View Camera |
Description and operation
Description
Blcok Diagram
Functions of MFC
Multi-Function Camera (MFC) supports the following functions using the information
(lane, light sourc ...
Other information:
