Component Location Index

Engine Room

1. Expansion valve
2. Service port (Low pressure)
3. Service port (High pressure)
4. A/C Pressure transducer (APT)
5. Compressor

6. Discharge hose
7. Suction & Liquid tube assembly
8. Condenser
9. Ambient temperature sensor

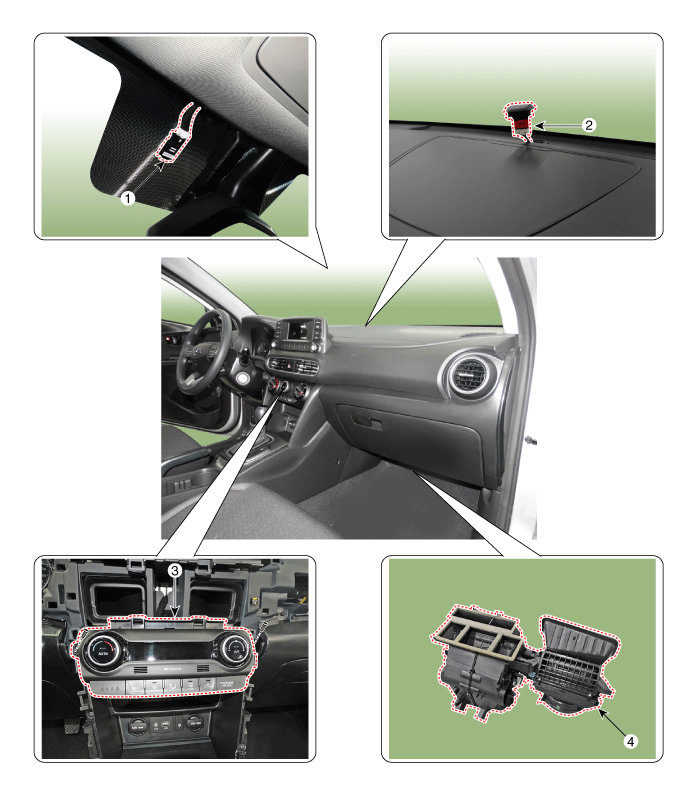

[Interior]

1. Auto Defogging Sensor
2. Photo Sensor

3. Heater & A/C Control Unit
4. Heater & Blower Unit
