Hyundai Kona: Engine Control System / Components and components location

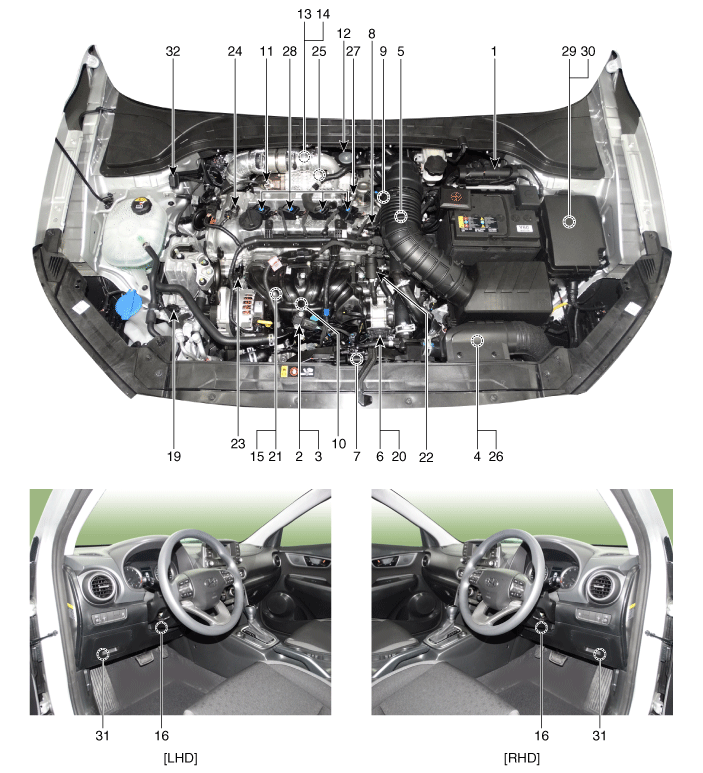

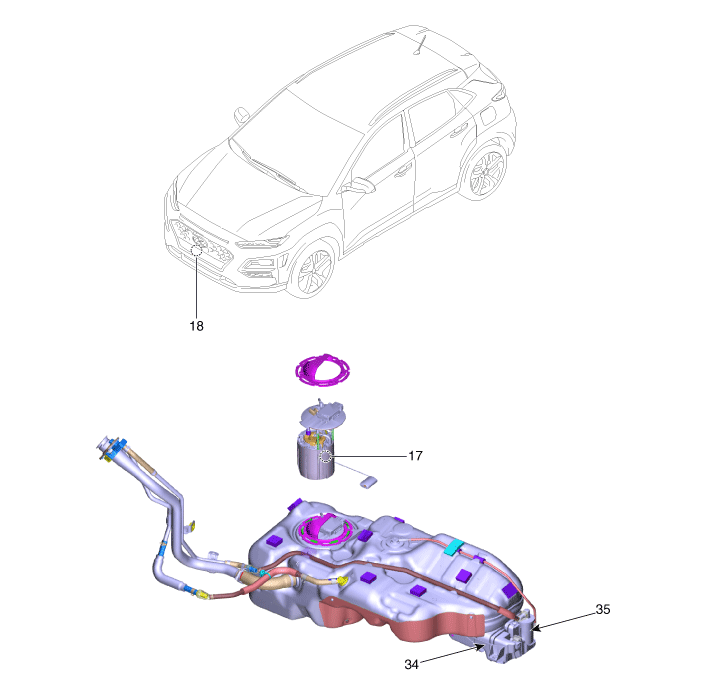

| Components Location |
| 1. ECM (Engine Control Module) 2. Manifold Absolute Pressure Sensor (MAPS) 3. Intake Air Temperature Sensor (IATS) 4. Boost Pressure Sensor (BPS) 5. Engine Coolant Temperature Sensor (ECTS) 6. Throttle Position Sensor (TPS) 7. Crankshaft Position Sensor (CKPS) 8. Camshaft Position Sensor (CMPS) [Bank 1 / Intake] 9. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust] 10. Knock Sensor 11. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 1] 12. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 2] 13. Exhaust Gas Temperature Sensor (EGTS) #1 14. Exhaust Gas Temperature Sensor (EGTS) #2 15. Rail Pressure Sensor (RPS) 16. Accelerator Position Sensor (APS) 17. Fuel Level Sensor (FLS) 18. Ambient Temperature Sensor (ATS) |
19. A/C Pressure Transducer (APT) 20. ETC Motor [integrated into ETC Module] 21. Injector 22. Purge Control Solenoid Valve (PCSV) 23. CVVT Oil Control Solenoid (OCS) [Bank 1 / Intake] 24. CVVT Oil Control Valve (OCV) [Bank 1 / Exhaust] 25. Electric Waste Gate Actuator (EWGA) 26. RCV Control Solenoid Valve 27. Fuel Pressure Control Valve 28. Ignition Coil 29. Main Relay 30. Fuel Pump Relay 31. Data Link Connector (DLC) [16Pin] 32. Multi-Purpose Check Connector [6Pin] 33. Fuel Pressure Sensor (FPS) 34. Canister 35. Fuel Tank Air Filter |
|
1. ECM (Engine Control Module) |
2. Manifold Absolute Pressure Sensor (MAPS) 3. Intake Air Temperature Sensor (IATS) |
|
|
|
|
4. Boost Pressure Sensor (BPS) |
5. Engine Coolant Temperature Sensor (ECTS) |
|
|
|
|
6. Throttle Position Sensor (TPS) 20. ETC Motor [integrated into ETC Module] |
7. Crankshaft Position Sensor (CKPS) |
|
|
|
|
8. Camshaft Position Sensor (CMPS) [Bank 1 / Intake] 9. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust] |
10. Knock Sensor (KS) |
|
|
|
|
11. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 1] |
12. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 2] |
|
|
|
|
13. Exhaust Gas Temperature Sensor (EGTS) #1 14. Exhaust Gas Temperature Sensor (EGTS) #2 |
15. Rail Pressure Sensor (RPS) 21. Injector |
|
|
|
|
16. Accelerator Position Sensor (APS) |
17. Fuel Level Sensor (FLS) |
|
|
|
|
33. Fuel Pressure Sensor (FPS) |
18. Ambient Temperature Sensor (ATS) |
|
|
|
|
19. A/C Pressure Transducer (APT) |
22. Purge Control Solenoid Valve (PCSV) |
|
|
|
|
23. CVVT Oil Control Solenoid (OCS) [Bank 1 / Intake] |
24. CVVT Oil Control Valve (OCV) [Bank 1 / Exhaust] |
|
|
|
|
25. Electric Waste Gate Actuator (EWGA) |
26. RCV Control Solenoid Valve |
|
|
|
|
27. Fuel Pressure Control Valve |
28. Ignition Coil |
|
|
|
|
29. Main Relay 30. Fuel Pump Relay |
31. Data Link Connector (DLC) [16Pin] |
|
|
|
|
32. Multi-Purpose Check Connector [6Pin] |
|
|
|
|
Description and operation
Description
If the Gasoline Engine Control system components (sensors, ECM, injector, etc.)
fail, interruption to the fuel supply or failure to supply the proper amount
of fuel f ...
Engine Control Module (ECM) Schematic diagrams
ECM Terminal and Input/Output
signal
ECM Terminal Function
Connector [A]
Pin No
Description
Connected to
1
...
