Hyundai Kona: ISG (Idle Stop & Go) System / Alternator Components and components location
Hyundai Kona (OS) 2018-2025 Service Manual / Engine Control / Fuel System / ISG (Idle Stop & Go) System / Alternator Components and components location

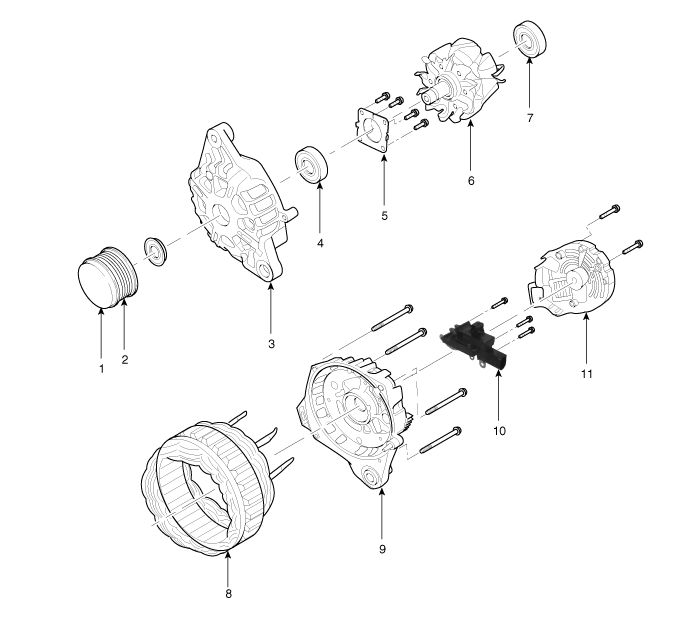

| Components |
| 1. Nut 2. Pulley 3. Front housing 4. Front bearing 5. Retainer 6. Rotor |
7. Rear bearing 8. Stator 9. Rear housing 10. Regulator 11. Rear cover |
Alternator Specifications
Specifications
Item
Specification
Nominal output
13.5V 130A
Speed in use
1,000 - 18,000 rpm
...
Alternator Schematic diagrams
Circuit Diagram
•
COM signal - LIN communication control
...
Other information:
Hyundai Kona (OS) 2018-2025 Service Manual: Schematic diagrams
Schematic Diagrams
Terminal Function
Pin No
Description
Current 12V / 20C (AMP)
Voltage range (V)
1
Voltage supply for pump motor
≤ 34
0 - 18
2
...
