Hyundai Kona: Engine Control System / CVVT Oil Control Valve (OCV) Schematic diagrams

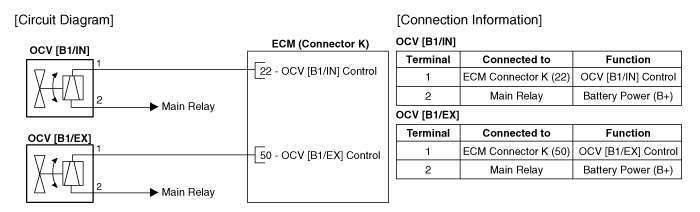

Circuit Diagram

Harness Connector
OCV [Bank 1/Intake]

OCV [Bank 1/Exhaust]

CVVT Oil Control Valve (OCV) Specifications
Specification Item Specification Coil Resistance (Ω) 6.9 - 7.9 [20°C (68°F)] ...

CVVT Oil Control Valve (OCV) Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the OCV connector. 3. Measure resistance between the ...
