Hyundai Kona: ISG (Idle Stop & Go) System / Components and components location

Hyundai Kona (OS) 2018-2026 Service Manual / Engine Control / Fuel System / ISG (Idle Stop & Go) System / Components and components location

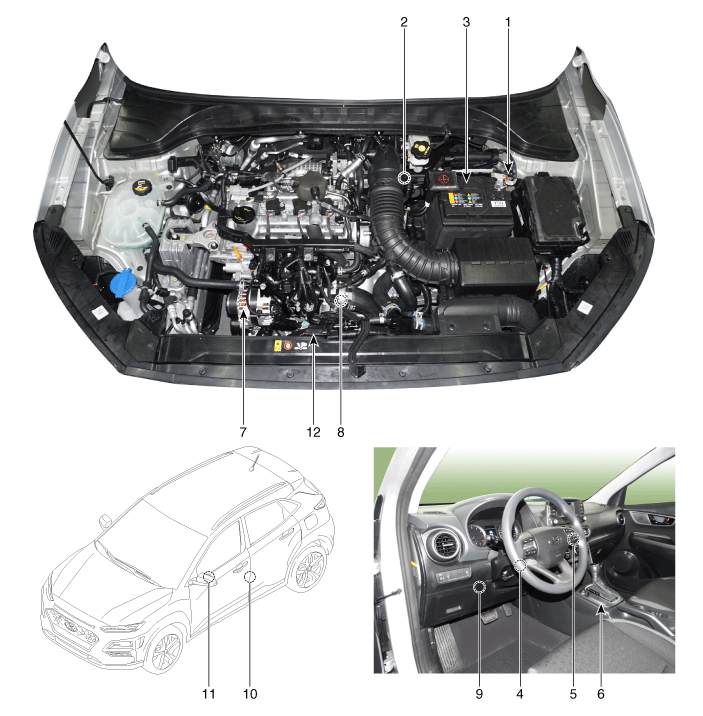

Components Location

1. Battery sensor
2. Brake Booster Vacuum Pressure Sensor (BBVPS)
3. AGM battery
4. DC/DC Converter [200W]
5. DC/DC Converter [450W]
6. ISG OFF Switch

7. Alternator
8. Starter
9. Brake switch
10. Door switch
11. Seat belt switch
12. Hood switch

1. Battery sensor 3. AGM battery	2. Brake Booster Vacuum Pressure Sensor (BBVPS)

4. DC/DC Converter [200W]	5. DC/DC Converter [450W]

6. ISG OFF Switch	7. Alternator

8. Starter	9. Brake switch

10. Door switch	11. Seat belt switch

12. Hood switch

Description and operation

Description Idle Stop & Go (ISG) function automatically switches off the engine when the car is at a standstill if the and starts it again as soon as the brake pedal is relea ...

Schematic diagrams

Operation Condition for the ISG function Operation Condition for the ISG function After every engine start, the function is automatically active and on stand-by. The ISG OFF ...
