Hyundai Kona: Wireless Power Charger System / Components and positions
Hyundai Kona (OS) 2018-2026 Service Manual / Body Electrical System / Wireless Power Charger System / Components and positions

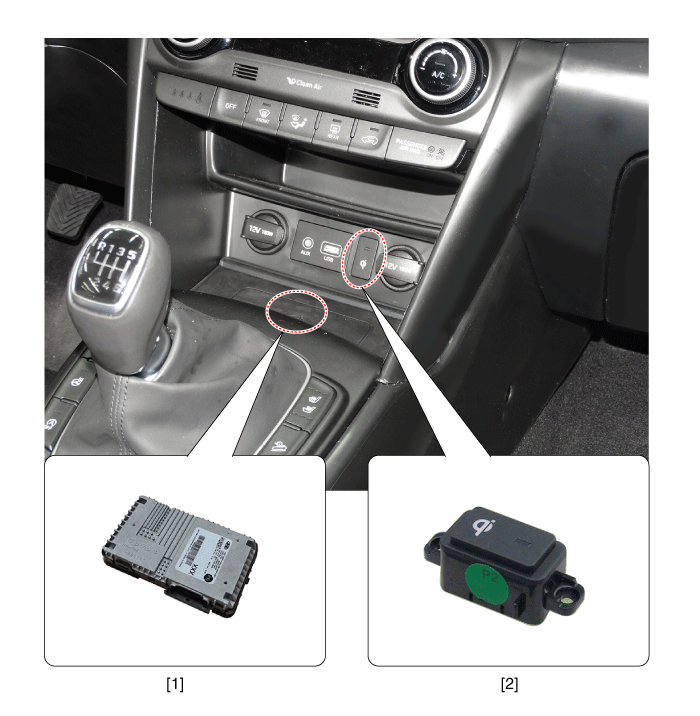

| Components |
| 1. Wireless power charging
unit |
2. Wireless power charging
lamp |
Specification
Specifications
Item
Specification
Rated voltage
DC 12V
Operating voltage
...
Description and operating principle
Description and Operation
Wireless Power Charger System
During ACC or IG ON, battery voltage is supplied to the wireless power charger
system to transmit an output of 5 ...
