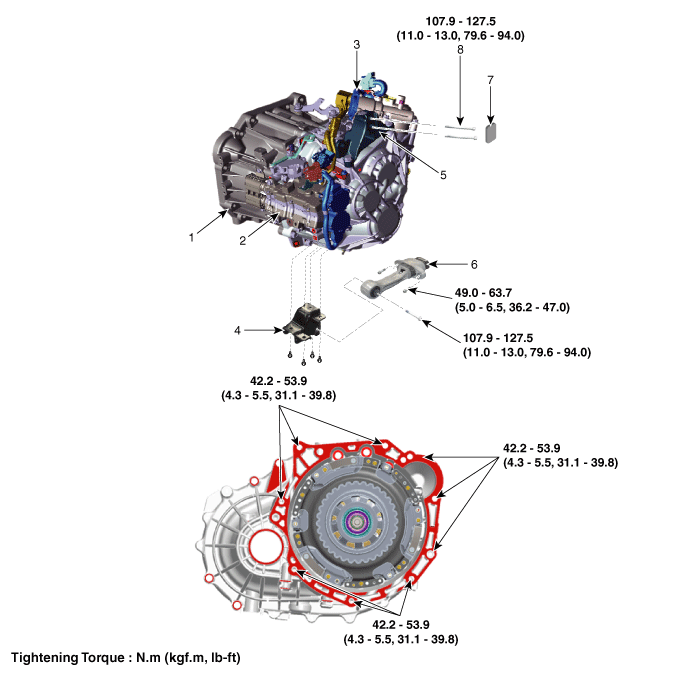

Components (1)

1. Dual clutch transmission assembly
2. Clutch actuator
3. Gear actuator
4. Roll rod support bracket
5. DCT(Dual Clutch Transmission) support bracket
6. Roll rod bracket
7. Dust cover
8. Support bracket mounting bolt

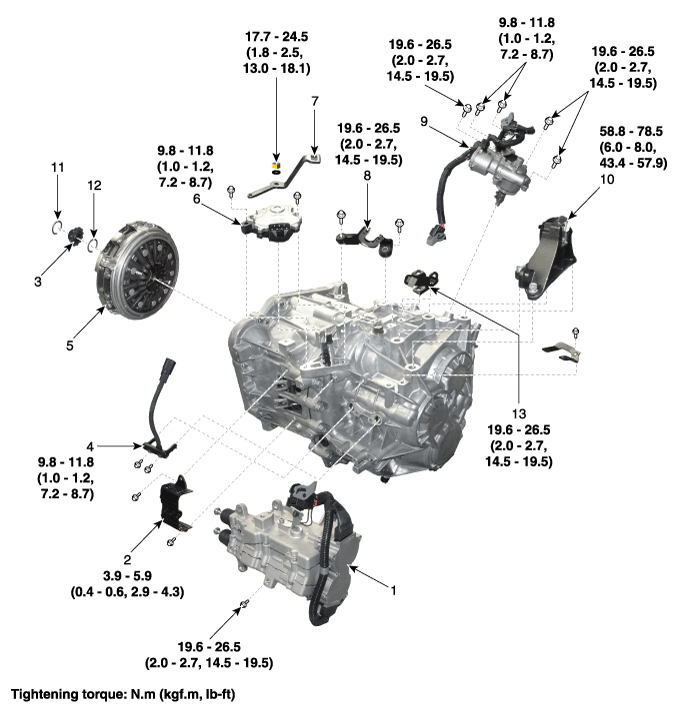

Components (2)

1. Clutch actuator
2. Fork cover
3. Spline hub
4. Input shaft speed sensor 1, 2
5. Dual clutch assembly
6. Inhibitor switch
7. Manual lever
8. Control cable bracket
9. Gear actuator
10. Dual clutch transmission support bracket
11. Retainning ring
12. Snap ring

Dual Clutch Transmission Assembly
...

DCT (Dual Clutch Transmission) Repair procedures
Removal 1. Remove the air cleaner assembly and air duct. (Refer to Engine Mechanical System - "Air Cleaner") 2. Remove th ...
