Hyundai Kona: Transmission shift indicator / Dual clutch transmission shift indicator

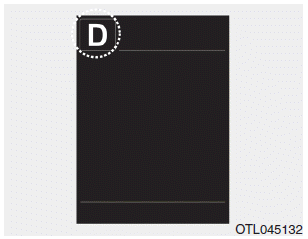

This indicator displays which shift lever position is selected.

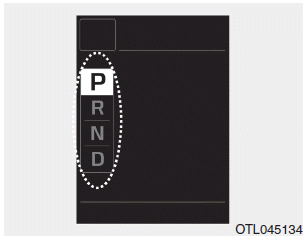

Shift Indicator Pop-up

The pop-up that indicates the current gear position is displayed in the cluster for about 2 seconds when shifting into other positions (P/R/N/D).

Transmission shift indicator
Manual transmission shift indicator This indicator informs which gear is recommended while driving, to save fuel. Shifting up : ▲2, ▲3, ▲4, ▲5, ▲6 Shifting down :▼1, ▼2, ▼3, ▼4, ...

Dual clutch transmission shift indicator
In the manual shift mode, this indicator informs which gear is desired while driving to save fuel. • Dual clutch transmission shift indicator - Shifting up :▲2, ▲3, ▲4, ▲5, ▲6 ▲7 - Shi ...
